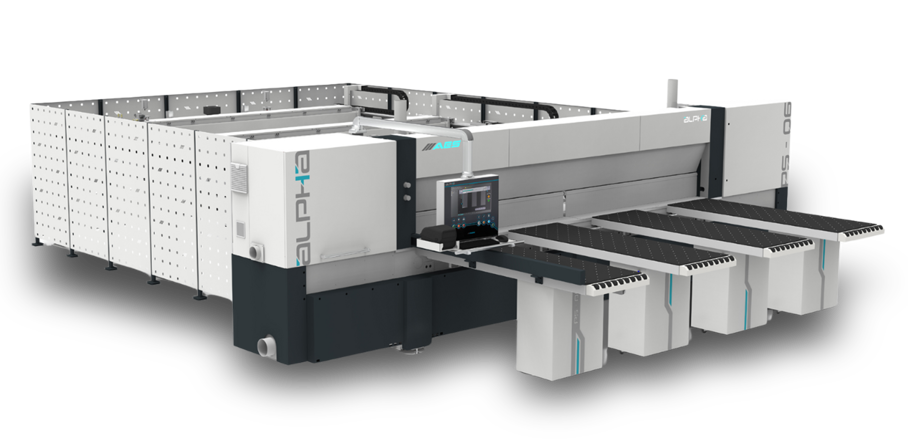

ALPHA PS05

This extremely stable heavy-duty beam saw uses high-quality and stable components, wide-range lateral pusher, cutting length measurement via laser sensor and servo-controlled stepless cutting height adjustment. This guarantees a continuous high-quality sawing result, even when sawing several panels in a package.
This sawing machine can be personalised and automated according to the customer's wishes, including extension to the rear, hydraulic lift tables, labelling station.

Cutting height up to 90 mm.
Cutting length 3300 x 3300 / 3900 x 3900 / 4300 x 4300mm

ALPHA PS05

ALPHA PS05

Back to overview

The industrial beam saw from AES Guarantees Precision and Speed

Thanks to the dual clamps, multiple panels can be quickly and accurately positioned.

The air cushion tables at the front and the rear support beams with double rollers ensure smooth and scratch-free movement of the panels, regardless of the surface.

Show more

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

ALPHA PS05 Technical data

  • 3 Working dimensions : 3300 x 3300mm / 3900 x 3900mm / 4300 x 4300mm
  • Steel saw table (top of machine frame)
  • Cutting height 90 mm
  • Saw blade projection max. 105 mm
  • Main saw motor 18 kw (24 HP)
  • Max. main saw blade diameter 430 mm
  • Max. scoring saw diameter 200 mm
  • Scoring saw motor 3,0 kw (4 HP)
  • Saw carriage; travel speed 90 m/min, on double prismatic guides
  • Cutting length optimisation via laser-sensor on saw carriage
  • Servo-controlled stepless height adjustment of the saw carriage
  • Pneumalock quick-change system for saw blade
  • 3 Air cushion tables 2185 x 700mm, 1 of which is fixed and 2 mobile ((cutting lengths 3200/3300 and 3800/3900mm)
  • 4 Air cushion tables 2185 x 700mm, 1 of which is fixed and 3 mobile (cutting length 4200/4300mm)
  • Pneumatically controlled pressure beam via prismatic guides on both sides
  • Pressure bar opening according to pack height (Power Pack 1)
  • Side pusher, behind pressure beam, with laser positioning, working range from 50 - 1850 mm
  • Clamping bar with travel speed 80 m/min, centrally driven with rack and pinion on prismatic guides on both sides.
  • 8 double-clamping plate clamps
  • Air pressure regulators of among others clamping beam pressure and clamping pressure near the operator position
  • Rear machine table with support beams equipped with double rollers
  • Steel saw table (top of machine frame)
  • PC integrated in electrical cabinet, equipped with USV system
  • Automatic central lubrication
  • AES operator-softwqre (Nl / Fr / Du / Eng)
  • Druckbalkenöffnung entsprechend der Pakkethöhe (Power Pack 1)
