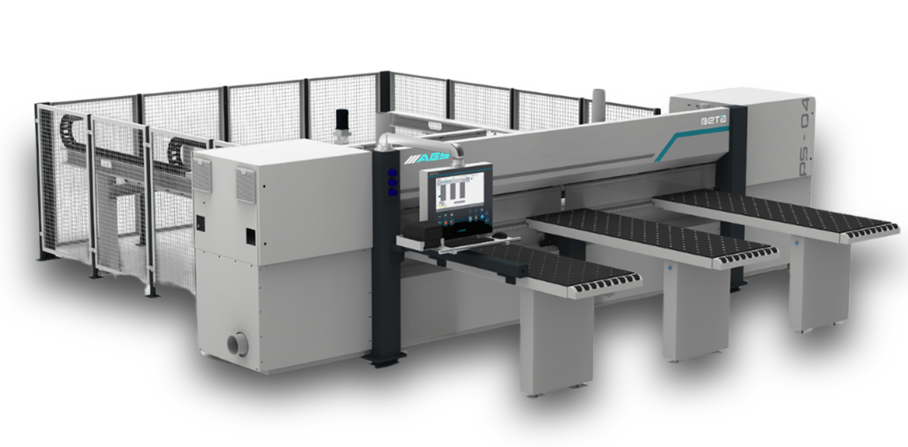

BETA PS04

AES beam panel saws are designed to cut panels as efficiently as possible. The horizontal saw guarantees fast and precise cuts thanks to a robust frame and the use of powerful motors, prismatic guides, etc.
The sturdy crossbar supporting the clamps and the spacious air-cushion front tables ensure precise positioning of the panels to be cut.

Cutting height up to 75 mm.
Cutting length 3200 x 3200 / 3800 x 3800 / 4200 x 4200mm

BETA PS04

BETA PS04

Back to overview

If you want to go a step further than a traditional panel saw, the AES BETA panel saw is the ideal solution. Designed to efficiently and accurately machine panels up to 4,200 mm at speeds of up to 70 m/min. The machine is built with a welded steel chassis for the highest accuracy in a mass production environment.

Three (or four) work tables with air cushions allow fast and accurate loading and unloading of panels. The clamp bar has 8 powerful clamps for accurate positioning, with a built-in side alignment system.

The high-quality saw carriage with solid steel construction accurately supports and guides the main saw and crosscut saw blade using brushless servo motors. The saw and saw blade diameter motors are available in various power and size options.

Show more

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

BETA PS04 Technical data

  • 3 possible working dimensions : 3200 x 3200mm / 3800 x 3800mm / 4200 x 4200mm
  • Saw table covred with HPL
  • Cutting height 75 mm
  • Saw blade projection max. 90 mm
  • Main saw motor 11 kw (15 HP)
  • Max. main saw blade diameter 380 mm
  • Max. scoring saw diameter 200 mm
  • Scoring saw motor 1,5 kw (2 HP)
  • Saw carriage working speed 80 m/min, on double prismatic guides
  • Cutting length optimisation via laser-sensor on saw carriage
  • Pneumatic 2-position controlled height adjustment of the saw carriage
  • Pneumalock quick-change system for saw blade
  • 3 Air cushion tables 2185 x 700mm, 1 of which is fixed and 2 mobile ((cutting lengths 3200/3300 and 3800/3900mm)
  • 4 Air cushion tables 2185 x 700mm, 1 of which is fixed and 3 mobile (cutting length 4200/4300mm)
  • Pneumatically controlled pressure beam via prismatic guides on both sides
  • Pressure bar opening according to pack height (Power Pack 1)
  • Side pusher, behind pressure beam, with laser positioning, working range from 50 - 1250 mm
  • Clamping bar with travel speed 70 m/min, centrally driven with rack and pinion on prismatic guides on both sides.
  • 8 single-clamping plate clamps
  • Air pressure regulators of among others clamping beam pressure and clamping pressure near the operator position
  • Rear machine table with support beams equipped with double rollers
  • Steel saw table (top of machine frame)
  • PC integrated in electrical cabinet, equipped with USV system
  • Automatic central lubrication
  • AES operator-softwqre (Nl / Fr / Du / Eng)
  • AES optimisation programme
  • Druckbalkenöffnung entsprechend der Pakkethöhe (Power Pack 1)
