GO! 1300 M

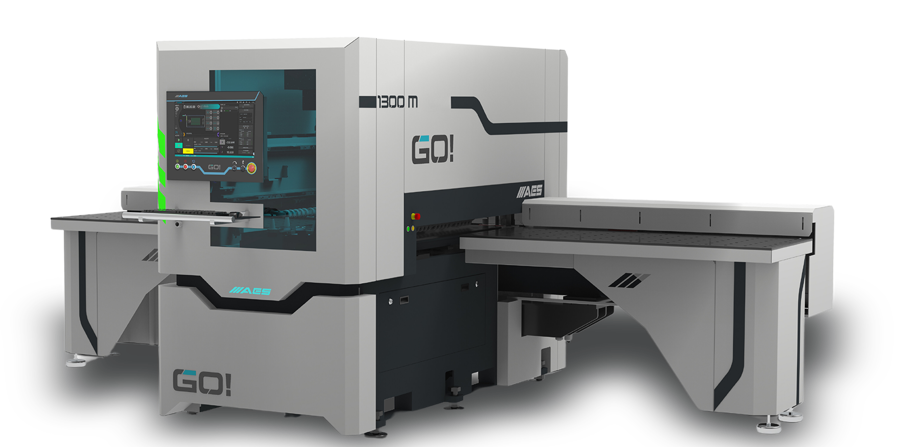

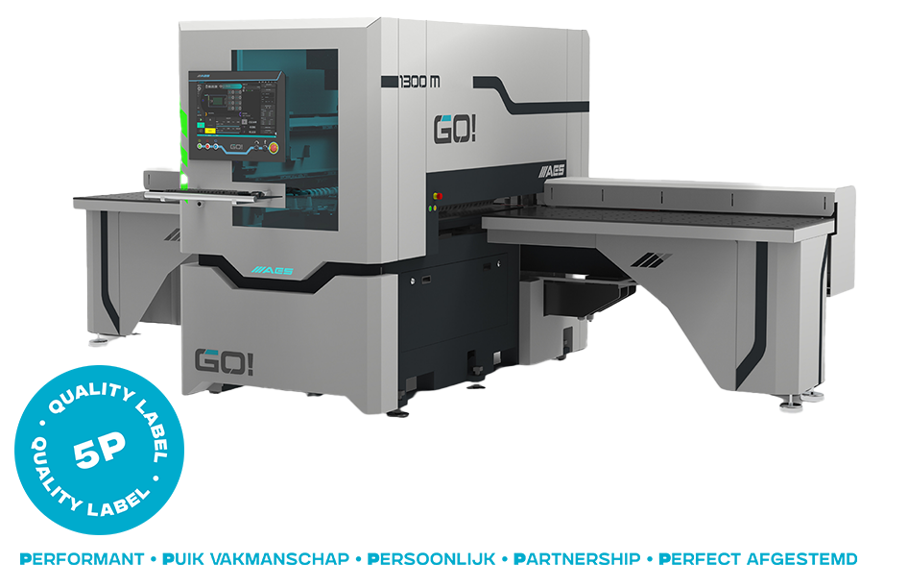

The GO! 1300-M is an extremely heavy-duty, compact 3-axis CNC machining centre on only a limited floor space required in your workshop.

With impressive machining accuracy, this machine ensures perfect drilling results time after time (for wood, aluminium or plastic).

The powerful milling motor ensures, among other things, that 4-sided calibrations run smoothly, just like other milling work to be carried out.

Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for interior builders in the world of CNC machining in the wood sector.

GO! 1300 M

GO! 1300 M

Back to overview

With a mimited footprint in your workshop, the compact GO! 1300-M series is the perfect machine for every interior builder. This machine can become the heart of your machining operations in your workshop.

The powerful milling motor and extensive drill head also make this machine a real winner. If you are looking for affordable quality and an alternative to the classic beam CNC machines, this is the perfect opportunity.

The highly intuitive user interface with logical arrangement of the operating elements ensures flawless integration in your company. Control via external CAD/CAM systems can be perfectly integrated.

Fitting the machine into automated projects is no problem either.

Dreams come true with this GO! 1300-M.

Show more

Key highlights at a glance

  • CNC machine on 7,1 m²
  • Very robust construction
  • No console & vacuum piston positioning
  • Very easy-to-use operating software
  • Powerful milling motor 7.5 HP
  • Extended drill head DH17
  • Air cushion table in front & behind the machine
  • Automatic centralised lubrication
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

GO! 1300 M Technical data

  • Workfield X= unlimited (100m/min.), Y = 1300 mm (100m/min.), Z = 60 mm (20m/min.)
  • Machining from top to bottom
  • Drill head DH17 / V=X6+Y4, H=X2+2 + Y1+1, S=X
  • Milling motor 5.5 Kw (7.5 Hp) ER32 / ISO30 tool clamping system
  • Workpiece transport by double clamp
  • 4-sided calibration
  • Air cushion table in the front and behind the machine
  • Automatic centralised lubrication
  • Controlled central extraction connection
  • Operator control screen integrated
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine
