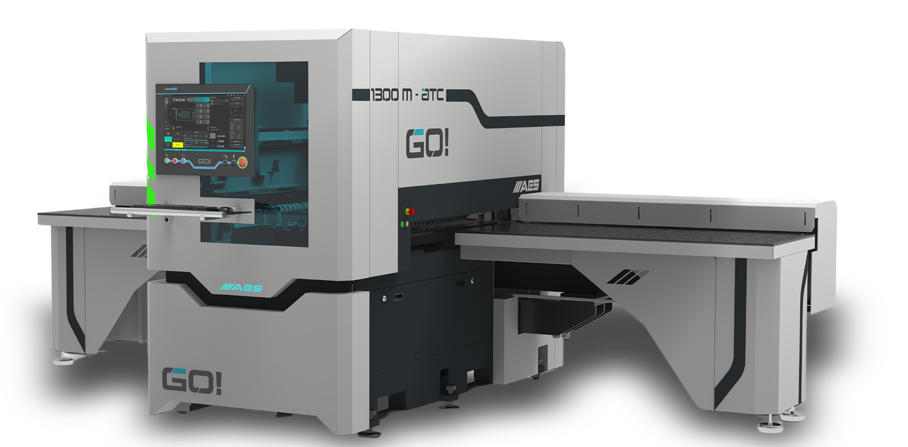

GO! 1300 M-ATC

The GO! 1300-M-ATC is an extremely heavy-duty, compact 3-axis CNC machining centre on a limited floor space required in your workshop.

With impressive machining accuracy, this machine ensures perfect drilling results time after time (for wood, aluminium or plastic).

Among other things, the powerful milling motor makes 4-sided calibrating flawless, as well as other milling work to be performed.

The rotary tool changer makes this machine extremely versatile and universal.

Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for interior builders in the world of CNC machining in the wood sector.

GO! 1300 M-ATC

GO! 1300 M-ATC

Back to overview

With a limited footprint in your workshop, the compact GO! 1300-M series is the perfect machine for every interior builder.

This machine can become the heart of your machining operations in your workshop.

The extended drill head, the powerful milling motor with coupled rotary tool change also make this machine a real winner. If you are looking for affordable quality and an alternative to classic beam CNC machines, this is the perfect opportunity.

The highly intuitive user interface with logical arrangement of the operating elements ensures flawless integration in your company. Control via external CAD/CAM systems can be perfectly integrated. Fitting the machine into automated projects is no problem either.

Dreams come true with this GO! 1300-M-ATC.

Show more

Key highlights at a glance

  • CNC machine on 7,1 m²
  • Very robust construction
  • No console & vacuum piston positioning
  • Very easy-to-use operating software
  • Powerful milling motor 7.5 HP
  • 6-position, servo-controlled tool changer
  • Extended drill head DH17
  • Air cushion table in front & behind the machine
  • Automatic centralised lubrication
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

GO! 1300 M-ATC Technical data

  • Workfield X= unlimited (100m/min.), Y = 1300 mm (100m/min.), Z = 60 mm (20m/min.)
  • Machining from top to bottom
  • Drill head DH17 / V=X6+Y4, H=X2+2 + Y1+1, S=X
  • Milling motor 5.5 Kw (7.5 Hp) ER32 / ISO30 tool clamping system
  • 6-fold rotary changer ISO30
  • Workpiece transport by double clamp
  • 4-sided calibration
  • Air cushion table in the front and behind the machine
  • Automatic centralised lubrication
  • Controlled central extraction connection
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine

Would you like to receive more information about GO! 1300 M-ATC?

GO! 1300 M-ATC

GO! 1300 M-ATC

Request a demo, quote or personal consultation
