GO! ULTRA

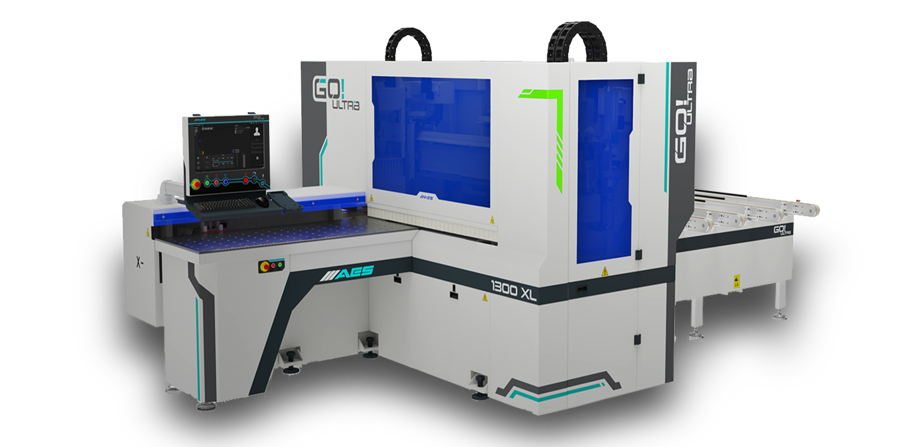

The GO! ULTRA is an extremely heavy-duty, 3-axis CNC throughfeed machining centre.

With impressive machining accuracy at a top speed of 120m/min. together with simultaneous drilling on top and bottom of parts, this machine ensures real productivity coupled with perfect drilling results time after time.

The (optionally) powerful milling motors ensure, among other things, that 4-sided calibrations run flawlessly, just like other milling work to be performed.

Simple control using state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for companies looking for a high-performance machine.

GO! ULTRA

GO! ULTRA

Back to overview

Een GO! ULTRA inschakelen in uw productieflow zal zorgen voor uitermate hoge performantie.

Dit doorloop bewerkingscenter kan zowel als los staande machine gebruikt worden als ingeschakeld worden in een al of niet geautomatiseerde productielijn voor optimale productie output.

Wie zoekt naar maximale productiviteit, rendement en dus top rentabiliteit, dan is deze GO! ULTRA dé beste keuze.

De zeer intuïtieve user-interface met logische opstelling van de bedienelementen zorgt voor een vlekkeloze integratie in uw bedrijf. Aansturing via externe CAD/CAM systemen is perfect integreerbaar.

Inpassen van de machine in geautomatiseerde projecten is tevens geen probleem.

Met deze GO! ULTRA zet u uw bedrijf op de kaart als moderne, efficiënte en klantgerichte schrijnwerkerij.


Show more

Key highlights at a glance

  • Very robust construction
  • Very easy-to-use operating software
  • Simultaneous drilling at top AND bottom
  • Fully extended top and bottom drill chucks
  • Air cushion table at the front of the machine
  • Outfeed carpet at rear of machine
  • Automatic centralised lubrication
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

GO! ULTRA Technical data

  • Continuous CNC drilling centre
  • Bewerkingsveld X= 3700 mm (120m/min.), Y = 1300 mm (70m/min.), Z = 60 mm (20m/min.)
  • Machining on top AND bottom
  • Drill head above DH20 / 11 vertical and 8 horizontal drilling spindles + 1 grooving saw in X
  • Drill head under DH9 / 9 vertical drilling spindles
  • Air cushion table on the infeed side
  • In addition to this standard version, further personalisation to best meet your needs is possible. Contact us without obligation.
  • Automatic centralised lubrication
  • Hand terminal, control possible
  • Workpiece verification by laser
  • Controlled central extraction connection
  • Operator bedieningsscherm draaibaar op ooghoogte
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
