RAPTOR 5X ULTRA

The Raptor 5X Ultra is an extremely heavy-duty 5-axis nesting CNC machining centre with the flexibility in use due to the range of tool changers, different drill head configurations, the extensive choice of the milling motor air or liquid-cooled that is right for you, and the ALU raster table divisible to as many as 18 vacuum zones.

With impressive machining accuracy, this machine ensures perfect milling and drilling results time after time.

Simple control with the latest CNC technology with NC-Hops software as standard.

The perfect machine for companies that demand top performance in 5-axis technology with the necessary productivity and cost-effectiveness in an industrial environment. The Raptor 5X Ultra is then always the right choice.

RAPTOR 5X ULTRA

RAPTOR 5X ULTRA

Back to overview

Universal, flexible 5-axis nesting CNC technology is what the Raptor 5X Ultra stands for. With its very spacious standard design accessible to everyone, this is a 5-axis nesting CNC machine for heavy and flexible work.

Coupling nesting technology with top performance, the Raptor 5X Ultra does it with ease on complex projects or robust challenges in an industrial environment.
This machine can become the heart of your machining operations in your workshop.

The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your operation.
Control via external CAD/CAM systems can be perfectly integrated. Automation or integration into existing, already automated production environments is no problem. Reliable, powerful, fast and modern high-tech even for heavy work and yet individually and customisable if required.

Show more

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • 5-axis gantry design construction
  • Available working field dimensions: 1325 / 1336 / 1632 / 1640 / 2128 / 2132 / 2136 / 2142 / 2157
  • ALU grid table
  • Work areas divisible up to 18 vacuum zones
  • Very easy-to-use operating software
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • Wide range of automation possibilities
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

RAPTOR 5X ULTRA Technical data

  • Gantry design
  • Workfield : Y=1300 mm, X=2500 / 3600 mm, Z=200 mm
  • Workfield : Y=1600 mm, X=3200 / 4000 mm, Z=200 mm
  • Workfield : Y=2100 mm, X=2800 / 3200 / 3600 / 4200 / 5700 mm, Z=200 mm
  • Milling motor 10Kw/13,5Pk HSK-F63, liquid cooler included, with ceramic bearings and pneumatically height-adjustable extraction hood
  • Drill head DH10 / V=X7+Y3
  • 12-fold rotary tool change, moving in X, all positions with anti-crash control sensor
  • 2 working fields = standard on 2157, other models possible in option
  • ALU raster table
  • Automatic centralised lubrication

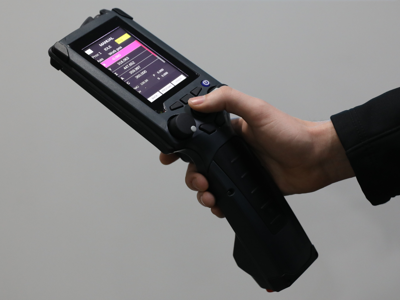

  • Handterminal Pro, all commandos
  • Controlled central extraction connection
  • Automatic tool length measuring system
  • All reference stops with control sensors
  • Visual status indication of the machine
  • Operator control screen integrated in electrical cabinet
  • CE safety system (to be provided)
  • Vacuum pump 250 m³/h, 2 vacuum zones for 1325, 4 vacuum zones for 1336 / 1632 & 6 vacuum zones for 1640 / 2128 / 2132 & 8 vacuum zones for 2136
  • Vacuum pump 2 x 250 m³/h, 10 vacuum zones for 2142 & 2157
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Operating speeds: X= 100m/min., Y = 100m/min., Z = 20m/min.
