RAPTOR ULTRA

The Raptor Ultra is an extremely heavy-duty 3-axis (optional 4-axis) nesting CNC machining centre with the necessary flexibility in use due to the range of tool changers, different chuck configurations, the extensive choice of the milling motor air or liquid-cooled that is right for you and the ALU raster table divisible to as many as 18 vacuum zones.
With impressive machining accuracy, this machine ensures perfect milling and drilling results time after time.
Simple control via state-of-the-art CNC technology with NC-Hops software as standard.
The perfect machine for interior design companies that value top performance with the necessary productivity and profitability in an industrial environment. The Raptor Ultra is then always the right choice.

RAPTOR ULTRA

RAPTOR ULTRA

Back to overview

Nesting CNC technology without compromise is what the Raptor Ultra stands for. With its very spacious standard design, it is accessible to anyone looking for a very heavy nesting CNC machine with the necessary power and profitability. Coupling nesting technology with top performance, the Raptor Ultra succeeds wonderfully. This machine can become the heart of your machining operations in your workshop. The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your operation. Control via external CAD/CAM systems can be perfectly integrated. Automation or integration into existing, already automated production environments is no problem. Reliable, powerful, fast and modern high-tech even for heavy work and yet individually and customisable if required.

Show more

Key highlights at a glance

  • Gantry design
  • Available working field dimensions: 1325 / 1336 / 1632 / 1640 / 2128 / 2132 / 2136 / 2142 / 2157
  • ALU grid table
  • Work areas divisible up to 18 vacuum zones
  • Very easy-to-use operating software
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • Wide range of automation possibilities
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

RAPTOR ULTRA Technical data

  • Gantry design
  • Workfield : Y=1300 mm, X=2500 / 3600 mm, Z=200 mm
  • Workfield : Y=1600 mm, X=3200 / 4000 mm, Z=200 mm
  • Workfield : Y=2100 mm, X=2800 / 3200 / 3600 / 4200 / 5700 mm, Z=200 mm
  • Automatic centralised lubrication

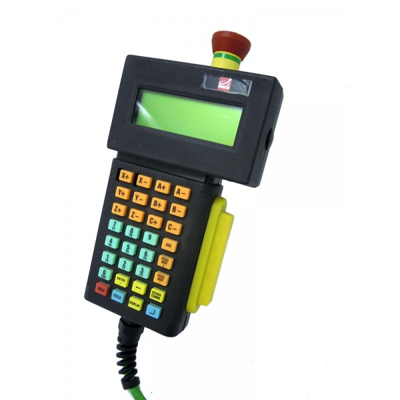

  • Hand terminal, manual control 3-axis
  • Operating speeds: X= 100m/min., Y = 100m/min., Z = 20m/min.
  • Milling motor 9Kw/12Pk HSK-F63 with ceramic bearings and pneumatically height-adjustable extraction hood
  • Drill head DH10 / V=X7+Y3
  • Controlled central extraction connection
  • Automatic tool length measuring system
  • All reference stops with control sensors
  • 12-fold rotary tool change, moving in X, all positions with anti-crash control sensor
  • Preparation for pick-up of aggregates
  • Operator control screen integrated in electrical cabinet

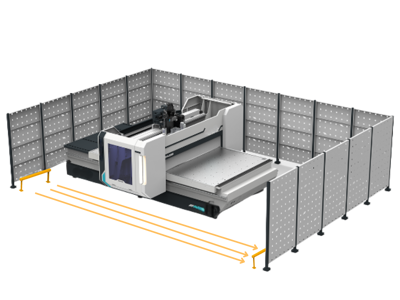

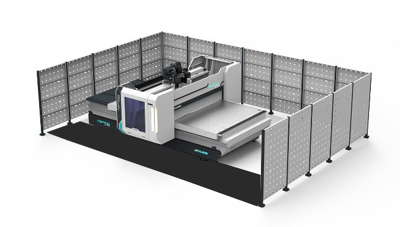

  • CE safety system (to be provided)
  • 2 working fields = standard on 2157, other models possible in option
  • Vacuum pump 250 m³/h, 2 vacuum zones for 1325, 4 vacuum zones for 1336 / 1632 & 6 vacuum zones for 1640 / 2128 / 2132 & 8 vacuum zones for 2136
  • Vacuum pump 2 x 250 m³/h, 10 vacuum zones for 2142 & 2157
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP

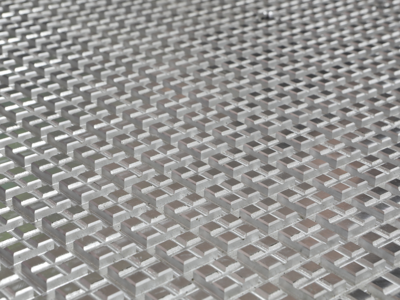

  • ALU raster table
  • Visual status indication of the machine
