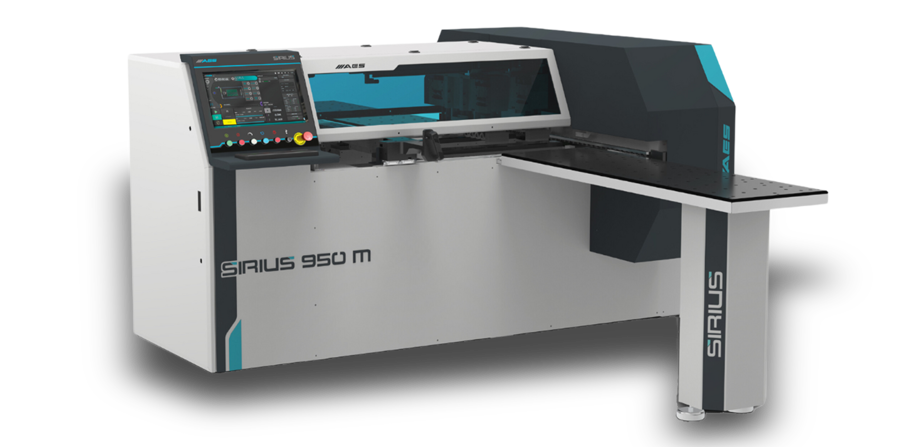

SIRIUS 950 M

The Sirius 950 M is a very compact 3-axis CNC machining centre on only a limited floor space in your workshop.

With impressive machining accuracy, this machine ensures perfect drilling results time after time (for wood, aluminium and plastic).

The powerful milling motor ensures, among other things, that 3-sided calibrations run smoothly, just like other milling work to be carried out.

Simple control using state-of-the-art CNC technology with NC-Hops software as standard.

The perfect entry for interior builders into the world of CNC machining in the wood sector.

SIRIUS 950 M

SIRIUS 950 M

Back to overview

With a limited footprint, the compact Sirius 950 M series is the perfect entry for any novice interior builder. This machine can also act as an affordable alternative for expanding your existing CNC capacity.

The powerful milling motor and extensive drilling head make this machine a real winner. The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your business.

Professionals are full of praise for this compact CNC Sirius 950 M.

Show more

Key highlights at a glance

  • CNC machine on 5,1 m²
  • Very robust construction
  • No console & vacuum piston positioning
  • Very easy-to-use operating software
  • Powerful milling motor 7.5 HP
  • Extended drill head DH17
  • Air cushion table in front & behind the machine
  • Manual centralised lubrication
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

SIRIUS 950 M Technical data

  • Workfield X= unlimited (70m/min.), Y = 950 mm (70m/min.), Z = 70 mm (20m/min.)
  • Machining from bottom to top
  • Drill head AES DH17 / 10 vertical drilling spindles (6 in X + 4 in Y) + 6 horizontal drilling spindles (4 in X + 2 in Y) + 1 grove saw in X
  • Milling motor AES 5.5 Kw (7.5 Hp) ER32 manual tool change
  • 3-sided calibration
  • Air cushion table in the front and behind the machine
  • Manual central lubrication
  • Central dust extraction connection
  • Operator control screen integrated
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine

Would you like to receive more information about SIRIUS 950 M?

SIRIUS 950 M

SIRIUS 950 M

Request a demo, quote or personal consultation
