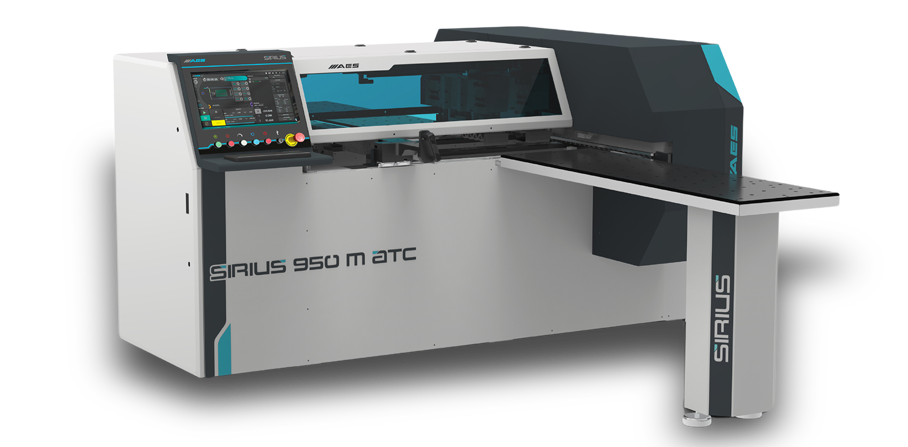

Sirius-950-M-ATC

The Sirius-950-M-ATC is a very compact 3-axis CNC machining centre on limited floor space in your workshop.
With impressive machining accuracy, this machine ensures perfect drilling results time after time.

Among other things, the powerful milling motor makes 4-sided calibrating flawless, just like other milling work to be carried out.
The rotary tool changer makes this machine extremely versatile and universal.
Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect entry for interior builders into the world of CNC machining in the wood sector.

Sirius-950-M-ATC

Sirius-950-M-ATC

Back to overview

With a limited footprint, the compact Sirius-950-M series is the perfect entry for any novice interior builder.

This machine can also act as an affordable alternative for expanding your existing CNC capacity. The extended drill head, the powerful milling motor with coupled, rotary tool change make this machine the cream of the crop.

The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your business.

Craftsmen are full of enthusiasm for this compact CNC Sirius-950-M-ATC.

Show more

Key highlights at a glance

  • CNC machine on 5,1 m²
  • Very robust construction
  • No console & vacuum piston positioning
  • Very easy-to-use operating software
  • Powerful milling motor 7.5 HP
  • 6-position, servo-controlled tool changer
  • Extended drill head DH17
  • Air cushion table in front & behind the machine
  • Manual centralised lubrication
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

Sirius-950-M-ATC Technical data

  • Workfield X= unlimited (70m/min.), Y = 950 mm (70m/min.), Z = 70 mm (20m/min.)
  • Machining from bottom to top
  • 4-sided calibration
  • Air cushion table in the front and behind the machine
  • Manual central lubrication
  • Drill head AES DH17 / 10 vertical drilling spindles (7 in X + 3 in Y) + 6 horizontal drilling spindles (4 in X + 2 in Y) + 1 grove saw in X
  • Milling motor AES 5.5 Kw (7.5 Hp) ER32 / ISO30 tool clamping
  • 6-fold rotary changer ISO30
  • Central dust extraction connection
  • Workpiece verification by laser
  • Operator control screen integrated
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine
