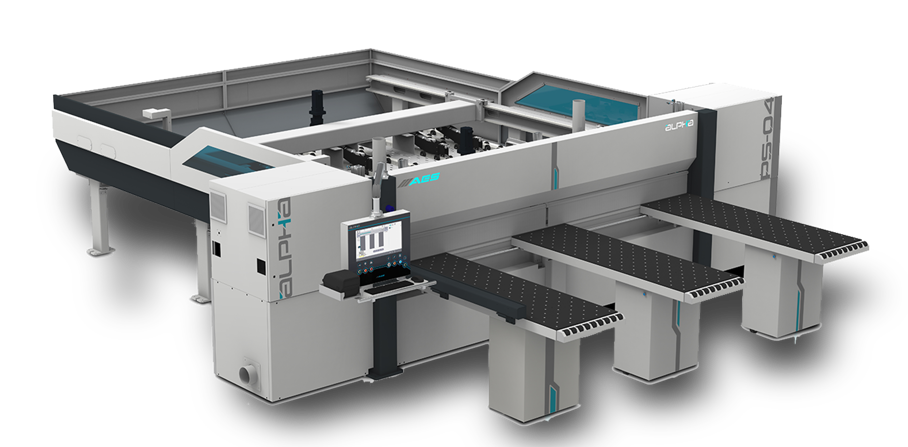

ALPHA PS04

This AES beam saw is built around a heavy-duty frame whose top is effectively the steel saw table itself. Further features of the beamsaw include standard saw carriage on prismatic guides, powerful motors and a material pusher with double clamps.
This panel-sizing saw guarantees fast and accurate cuts.
Extended versions to the rear and automated lift tables are also possible.

Cutting height up to 75 mm.
Cutting length 3300 x 3300 / 3900 x 3900 / 4300 x 4300 mm


ALPHA PS04

ALPHA PS04

Back to overview

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

ALPHA PS04 Technical data

  • 3 Working dimensions : 3300 x 3300mm / 3900 x 3900mm / 4300 x 4300mm
  • Steel saw table (top of machine frame)
  • Cutting height 75 mm
  • Saw blade projection max. 90 mm
  • Main saw motor 15 kw (20 HP)
  • Max. main saw blade diameter 380 mm
  • Max. scoring saw diameter 200 mm
  • Scoring saw motor 2,2 kw (3 HP)
  • Saw carriage; travel speed 90 m/min, on double prismatic guides
  • Cutting length optimisation via laser-sensor on saw carriage
  • Servo-controlled stepless height adjustment of the saw carriage
  • Pneumalock quick-change system for saw blade
  • 3 Air cushion tables 2185 x 700mm, 1 of which is fixed and 2 mobile ((cutting lengths 3200/3300 and 3800/3900mm)
  • 4 Air cushion tables 2185 x 700mm, 1 of which is fixed and 3 mobile (cutting length 4200/4300mm)
  • Pneumatically controlled pressure beam via prismatic guides on both sides
  • Pressure bar opening according to pack height (Power Pack 1)
  • Side pusher, behind pressure beam, with laser positioning, working range from 50 - 1850 mm
  • Clamping bar with travel speed 80 m/min, centrally driven with rack and pinion on prismatic guides on both sides.
  • 8 double-clamping plate clamps
  • Air pressure regulators of among others clamping beam pressure and clamping pressure near the operator position
  • Rear machine table with support beams equipped with double rollers
  • Steel saw table (top of machine frame)
  • PC integrated in electrical cabinet, equipped with USV system
  • Automatic central lubrication
  • AES operator-softwqre (Nl / Fr / Du / Eng)
  • Druckbalkenöffnung entsprechend der Pakkethöhe (Power Pack 1)
