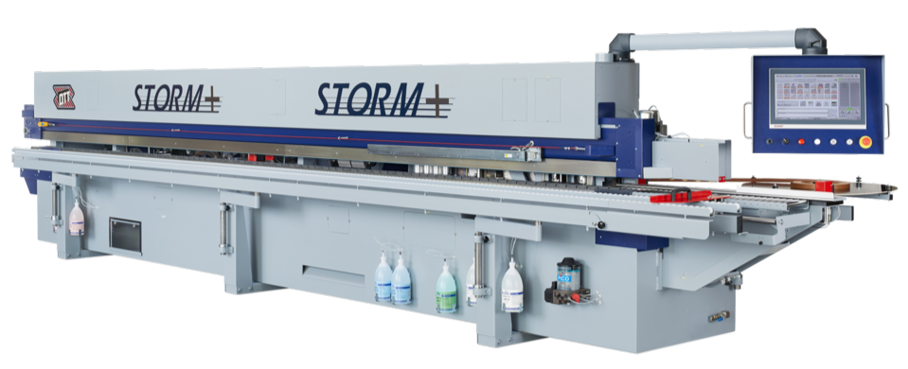

Storm+

OTT edgebander with a wide standard execution including central control of all machining units and glue settings, flat top pressure belt, high feed rate, multiple milling and scraper units.
This combination of high-quality units gives a perfectly finished end product.
Fast automated radius and flat scraper settings via touch screen....
Expansion possible to multiple edge magazines with automatic call and corresponding adjustment of the finishing-units from the control panel.
Combined with various range of possible return systems, this makes the ideal edgebander for those processing a multitude of edge and panel materials.

Storm+

Storm+

Back to overview

Through years of experience and use of the latest technology, OTT guarantees a perfect finish of your edge banding with an extremely fine to practically invisible glue joint.
Simple operation via touch screen of both gluing system and the various processing units.
Thanks to the clear icons of the various units and the individual converters, the various units can be individually electro-pneumatically switched on and off and fine adjustment according to the sheet and edge material to be processed is possible from the control panel itself.
This avoids manual intervention on the units themselves.
With the unique CombiMelt system, both EVA and PUR adhesives can be processed.
Various parameters such as temperature, rotation direction of the glue roller, extremely precise dosing of the glue quantity can be adjusted according to the sheet and edge material to be processed.
The quick-change system for glue containers and glue rolls in combination with a specially developed 'storage box' for PU glue containers allows quick changes between various colours and/or EVA glue.
Executed according to model and version with roughing, individual face, bevel and radius cutters, rounding group, radius and face scrapers, sanding units, ....

Show more

Machines for edgebanding have been DB&S's trump card for years.
With OTT, we have the top performer in this field available.
Austrian top quality where every machine is hand-made according to your wishes.

Storm+ Technical data

  • Edge thickness 0.3 - 15 mm
  • Workpiece height: 8 - 60 mm
  • Feed speed variable from 12 to 20m/min.
  • Workpiece width min. 80 mm
  • Workpiece length: min. 150 mm
  • Machine length 7800 mm
  • Top pressure bar with electric positioning according to panel thickness. Setting from the touch screen.
  • SynchroFlex Flat top feed belt, synchronous with the machine's bottom feed chain, separately motorised, . In combination with the classic OTT top feed wheels.
  • Automatic chain lubrication allows feed speed up to 20m/min.
  • 18.5" colour touchscreen for optimum ease of operation.
  • Beckhoff Industrial PC. Power bus system of the individual converters
  • Programmable preselections for setting glue system and processing units
  • Network card for integration into the company network
  • Automatic feed fence. All the sawing and milling units remain in place and the panel entry depth is set. Manual adjustment of edge thickness is avoided.
  • Pre-milling unit with 2 HF motors, clockwise and counter-clockwise, automatically controlled, diamond tool, for panel thicknesses up to 42 mm
  • Automatic feeding of edge material on roll. With 1 disc for inserting edge rollers max. diam. 800 mm
  • Automatic feed magazine for strips or solid edges
  • Special hardware for full monitoring & control of the CombiMelt gluing system
  • CombiMelt glue system : compartmentalised glue container 2.5l for EVA /PUR glue with separate filling pipe OR PUR round glue container 125mm (high version 2 kg). With quick-change glue head.
  • Pressure zone with 1 large driven pressure roller and 4 smaller secondary rollers. Pneumatic trimming of edge material on roll 0.3 - 3mm.
  • Cutting edge material to panel length front and back. 2 Hf motors individually tiltable from command panel: 0° and 3°
  • Recognising of notches, hinge holes & CNC work up to a max length of 80 mm
  • Nesting package : Automatic electro-pneumatic adjustment of all milling and scraper units (incl corner rounds) when drilling into the workpiece. Controlled by the machine controller.
  • Lubricant-spraying device for avoiding scratches on sensitive edge material. Placed between the pressure zone and the first milling unit.
  • Rough trimming top and bottom. Trimming solid edges or pre-milling PVC or veneer edges. 2 HF motors
  • Fine/ Radius milling at top and bottom. Automatic positioning. 2 HF motors R=2
  • Rounding group using 2 individual units, each with 3-axis control. Automatic positioning according to the thickness of the glued edge. With diamond tools
  • Corner-rounding group prepared for use of quick-change motors (change motors themselves not included)
  • Automatic 2-position scraper unit. Equipped with R1 + R2. Integrated extraction with separate waste bin.
  • Protective film compensation for high-gloss material
  • Flat scraper. For removal of excess glue and/or excess edge material. With 2-position adjustment (-0/+0.1 mm) from the touch screen.
  • Free space 1200mm for additional (finishing) unit
  • LED illumination of the inside of the machine
  • In addition to this standard version, further personalisation to best meet your needs is possible. Contact us without obligation.
