TRANSlift

TRANSlift is the solution that takes your production process to the next level.

The workpieces are returned to the operator, if required turned 90° or 180° by the vacuum manipulator.
Control fully integrated in the edge bander control panel.

Processing large oversized or small workpieces is also no problem.

Find out below what the OTT TRANSlift can do for you.

TRANSlift

TRANSlift

Back to overview

TRANSlift is the perfect completion of your new or existing OTT edge joining machine:

The workpieces are returned to the operator fully-automatically.
Via an automatic air-cushion lifting table and an air-cushion connecting table between conveyor outlfeed and input of the edge bander, the workpieces are ergonomically manipulated and introduced for the next pass.

Control fully integrated in the edge-bander control panel.

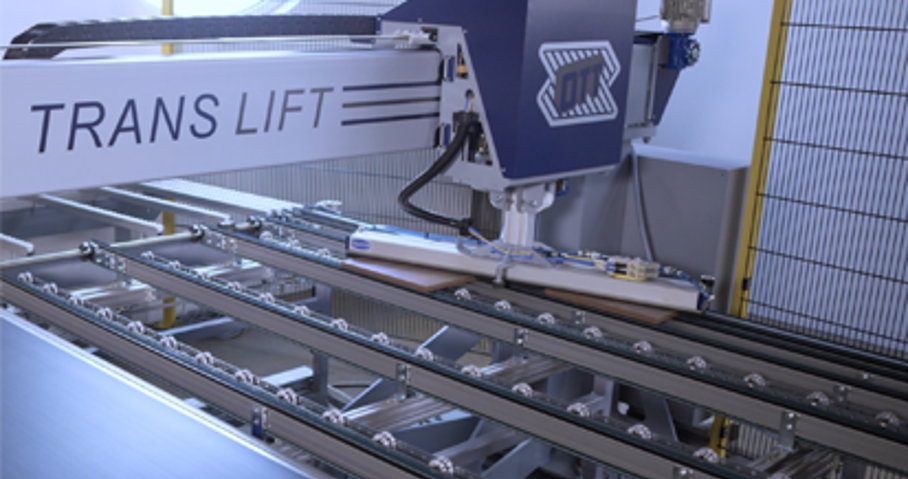

If required, various workpiece sizes can be turned 90° or 180° by the vacuum manipulator.
Individually adjustable per passage/finishing side of the workpiece.

Workpieces up to 1300 x 3000 mm are turned by the system and returned to the operator.
Small workpieces can be turned in groups.
Oversized panels can be returned manually over roller tracks.

Show more

Machines for edgebanding have been DB&S's trump card for years.
With OTT, we have the top performer in this field available.
Austrian top quality where every machine is hand-made according to your wishes.

TRANSlift Technical data

  • Workpiece height: 8 - 60 mm
  • Max. workpiece size 1300 x 3000 mm
  • Rotatie werkstukken + 90°, - 90° en 180°
  • Max. workpiece weight 60 kg
  • Accumulation mode : 2 smaller workpieces are lifted and rotated together by the vacuum manipulator
  • Lift table at machine exit for manual manipulation or return to machine entry
  • Possibility to process oversized workpieces
  • Air cushion table at end of return conveyor with automatic lifting to feed level, with air cushion connection table to machine feed.
  • Full integration into the OTT edgebander control system
