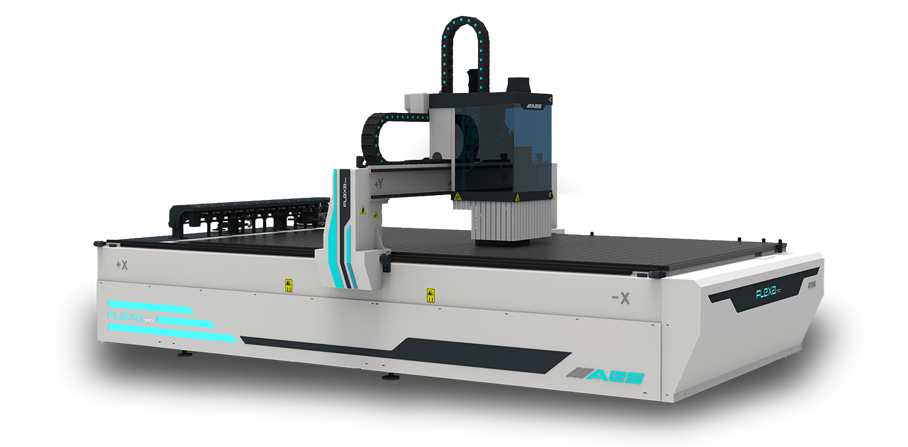

FLEXA PRO

The Flexa Pro is a straightforward 3-axis nesting CNC machining centre with yet the necessary flexibility in use due to its linear tool changer and HPL raster table divisible to as many as 18 vacuum zones.

With impressive machining accuracy, this machine ensures perfect milling and drilling results time after time.

Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for interior design companies looking for flexibility on a very attractive budget.

FLEXA PRO

FLEXA PRO

Back to overview

Nesting CNC technology in affordable form, that's what the Flexa Pro stands for. With its very spacious standard version, it is accessible to anyone looking for a fully- functional nesting CNC machine.

Combining nesting technology with top performance, the Flexa Pro succeeds wonderfully.

This machine can become the heart of your machining operations in your workshop.

The highly intuitive user-interface with logical arrangement of control elements ensures flawless integration into your company.

Control via external CAD/CAM systems can be perfectly integrated. Reliable, powerful and modern high-tech. Made-to-measure or series production, with the Flexa Pro you are always right.

Show more

Key highlights at a glance

  • Gantry design
  • Available working field dimensions:1325 / 1336 / 1632 / 2128 / 2132 / 2136

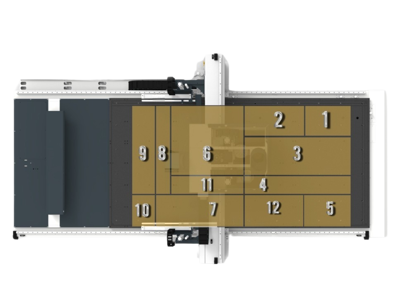

  • Work areas divisible up to 18 vacuum zones
  • Very easy-to-use operating software
  • Central lubrication
  • Automatic tool length measuring system
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

FLEXA PRO Technical data

  • Gantry design
  • Workfield : X=2500/3600 mm, Y=1300 mm, Z=200 mm
  • Workfield : X=3200mm, Y=1600 mm, Z=200 mm
  • Workfield : X=2800/3200/3600 mm, Y=2100 mm, Z=200 mm
  • Control speeds: X= 70m/min, Y = 70m/min, Z = 20m/min. speeds
  • Milling motor 9Kw/12Pk HSK-F63 with ceramic bearings and pneumatically height-adjustable extraction hood

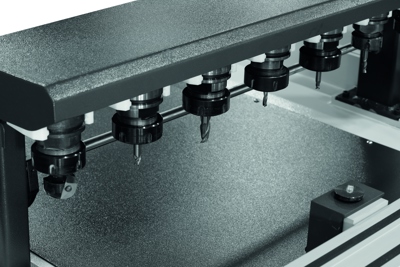

  • 8-fold linear tool change, at the left of the chassis, all positions with anti-crash control sensors (on Flexa Pro 1325 / 1336 / 1632)
  • 12-fold linear tool change, at the left of the chassis, all positions with anti-crash control sensors (on Flexa Pro 2128 / 2132 / 2136)
  • Manual central lubrication

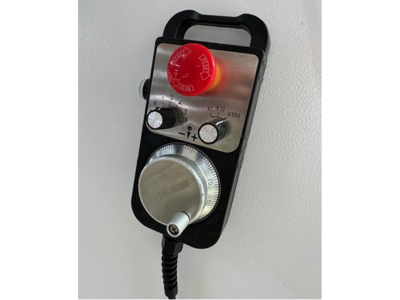

  • Hand terminal, manual control 3-axis
  • Controlled central extraction connection
  • HPL raster table
  • Automatic tool length measuring system

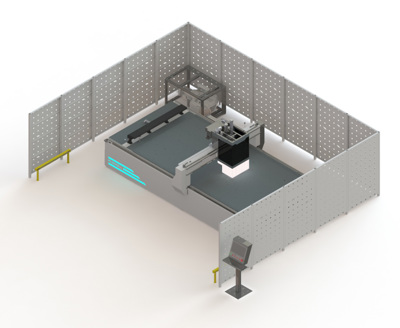

  • All reference stops with control sensors

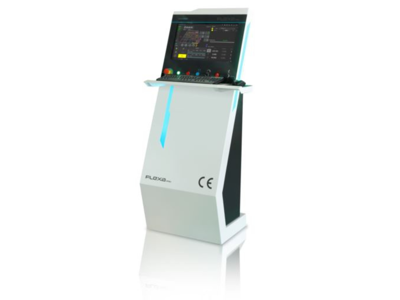

  • Operator control screen integrated in electrical cabinet

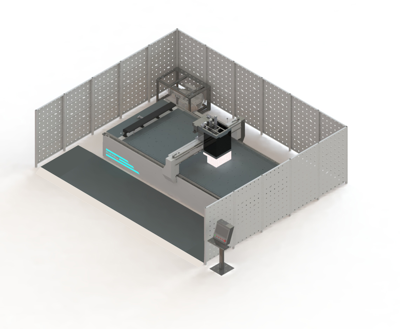

  • CE safety system (to be provided)

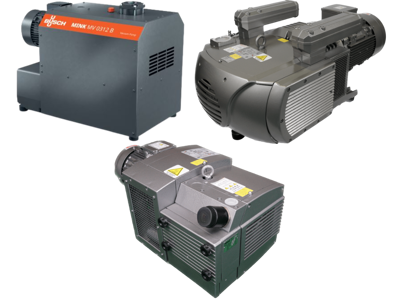

  • Vacuum pump 140 m³/h (on Flexa Pro 1325 & 1632)
  • Vacuum pump 250 m³/h (on Flexa Pro 1336, 2128, 2132 & 2136)

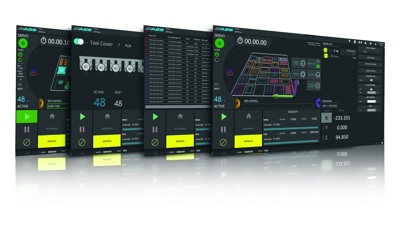

  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine
