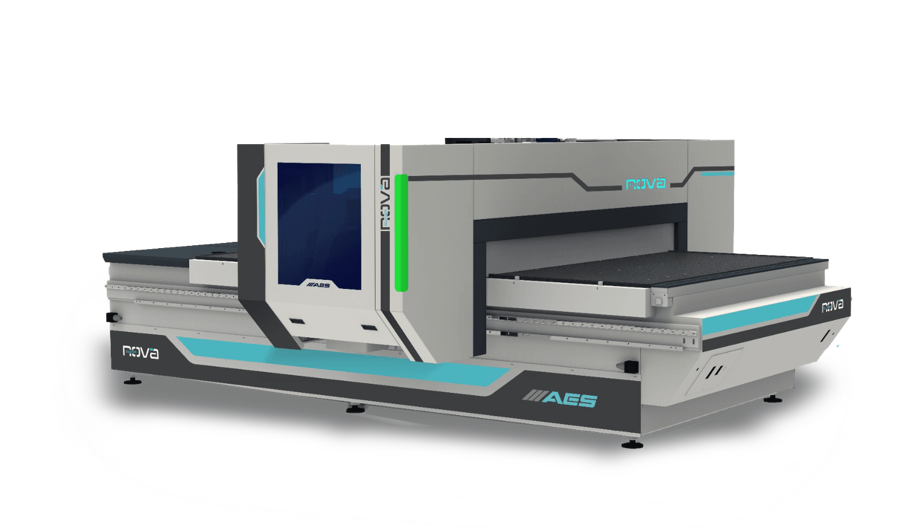

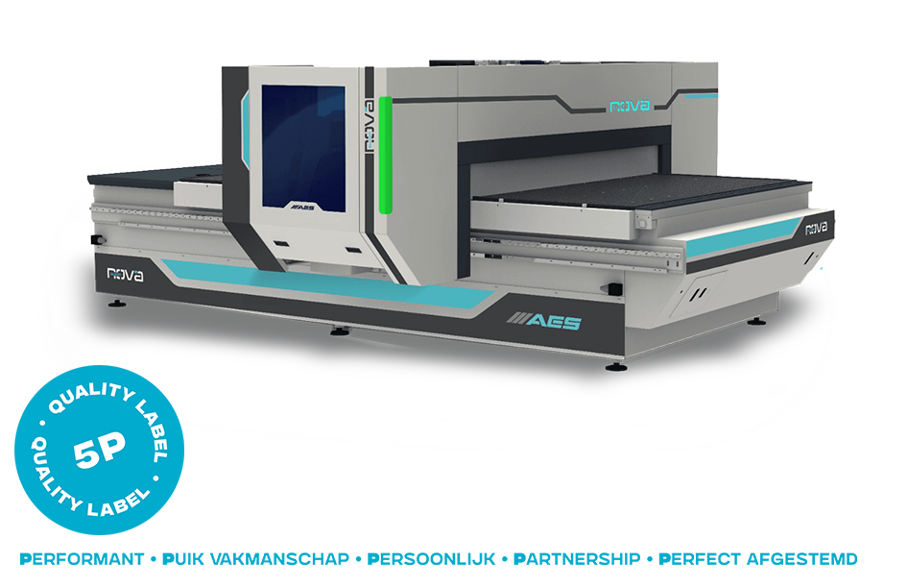

SUPER NOVA

The Super Nova is a sincere 3-axis nesting CNC machining centre with yet the necessary flexibility in use due to the range of tool changers, the extensive choice of milling motor air or liquid cooled to suit you and the HPL raster table divisible to as many as 18 vacuum zones.
With impressive machining accuracy, this machine ensures perfect milling and drilling results time after time.
Simple control with the latest CNC technology with NC-Hops software as standard.
The perfect machine for companies in the interior construction industry that appreciate flexibility but still have the necessary productivity for a very attractive budget.

SUPER NOVA

SUPER NOVA

Back to overview

Nesting CNC technology in affordable form, that's what the Super Nova stands for. With its very generous standard design, it is accessible to anyone looking for a fully-fledged nesting CNC machine with the necessary power and profitability. Combining nesting technology with top performance, the Super Nova succeeds wonderfully.

This machine can become the heart of your machining operations in your workshop.

The highly intuitive user interface with logical arrangement of the operating elements ensures flawless integration into your company. Control via external CAD/CAM systems can be perfectly integrated. Automating or integrating into existing already automated production environments is no problem. Reliable, powerful and modern high-tech. Made-to-measure or series production, it always works with Super Nova.

Show more

Key highlights at a glance

  • Gantry design
  • Available working field dimensions: 1325 / 1336 / 1632 / 1640 / 2128 / 2132 / 2136 / 2142 / 2157
  • Work areas divisible up to 18 vacuum zones
  • Very easy-to-use operating software
  • Central lubrication
  • Automatic tool length measuring system
  • Wide range of automation possibilities
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

SUPER NOVA Technical data

  • Gantry design
  • Workfield : Y=1300 mm, X=2500 / 3600 mm, Z=200 mm
  • Workfield : Y=1600 mm, X=3200 / 4000 mm, Z=200 mm
  • Workfield : Y=2100 mm, X=2800 / 3200 / 3600 / 4200 / 5700 mm, Z=200 mm
  • Milling motor 9Kw/12Pk HSK-F63 with ceramic bearings and pneumatically height-adjustable extraction hood
  • Drill head DH9 / V=X5+Y4

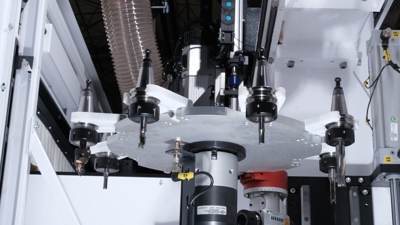

  • 8-fold rotary tool change, moving in X, all positions with anti-crash control sensor
  • 2 working fields (= standard on Super nova 2157, other models possible in option)

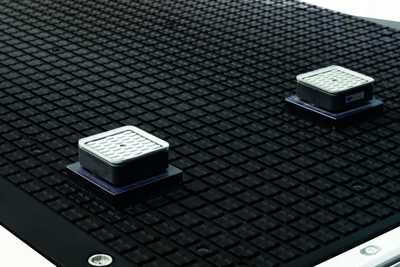

  • HPL raster table
  • Manual central lubrication
  • Controlled central extraction connection

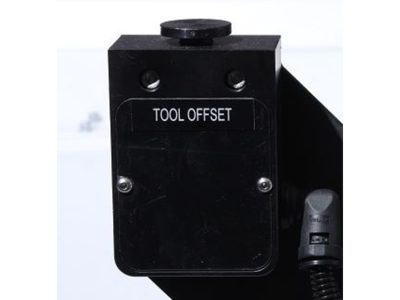

  • Automatic tool length measuring system
  • All reference stops with control sensors

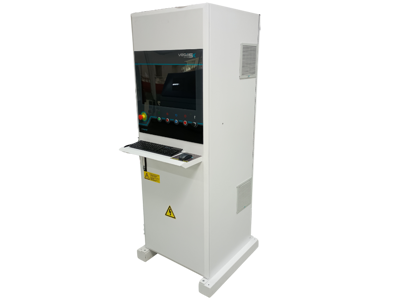

  • Operator control screen integrated in electrical cabinet

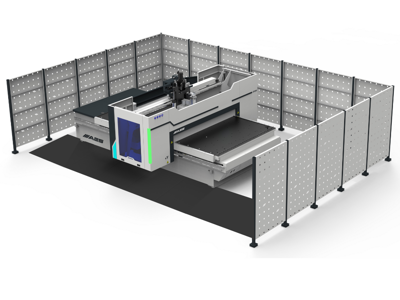

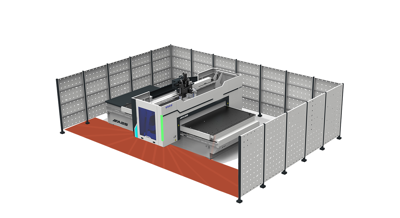

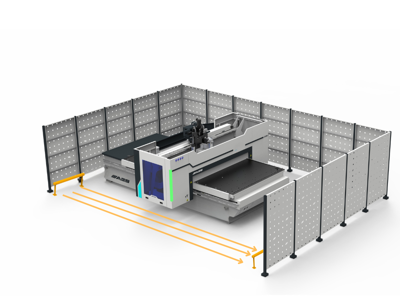

  • CE safety system (to be provided)

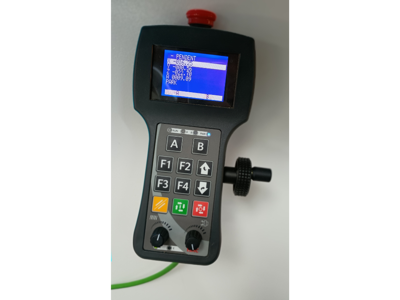

  • Hand terminal, manual control 3-axis
  • Preparation for pick-up of aggregates
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Vacuum pump 140 m³/h, 2 vacuum zones for 1325 & 4 vacuum zones for 1632
  • Vacuum pump 250 m³/h, 4 vacuum zones for 1336 & 6 vacuum zones for 1640 / 2128 / 2132, 8 vacuum zones for 2136 & 10 vacuum zones for 2142
  • Vacuum pumps 2 x 250 m³/h, 10 vacuum zones for 2157
  • Control speeds: X= 70m/min, Y = 70m/min, Z = 20m/min. speeds
  • Visual status indication of the machine
