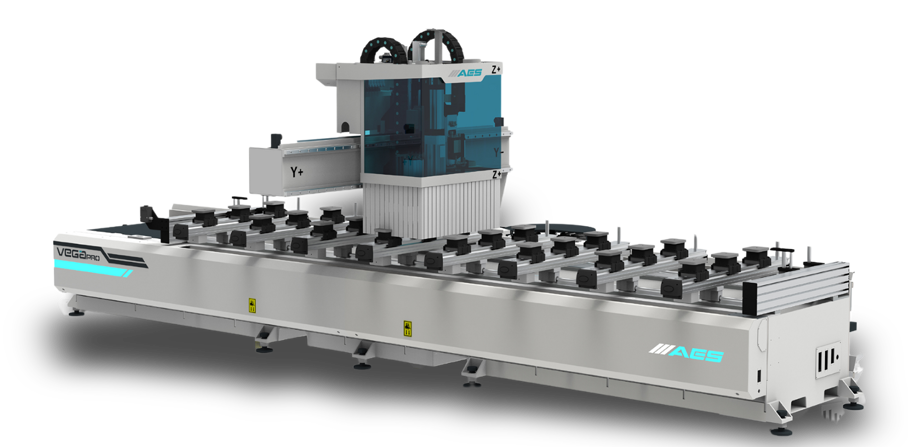

VEGA PRO

The Vega Pro is an extremely heavy-duty 3-axis (optional 4-axis) CNC machining centre with Schmalz vacuum consoles and the unique Schmalz hoseless vacuum suction system.

A gooseneck construction with open front ensures quasi-unlimited set-up of large parts. Combined with an X-axis machining length of up to 6000 mm, for example, and the possibility of pendulum operation, this machine is a real winner.

With impressive machining accuracy, this machine ensures perfect drilling and milling results time after time.

Simple control using state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for interior and custom companies looking for flexibility.

Today cabinets, tomorrow doors, The Vega Pro has it coming.

VEGA PRO

VEGA PRO

Back to overview

CNC technology in affordable form, that's what the Vega Pro stands for. With its very generous standard version, it is accessible to anyone looking for a fully-optimised CNC machine for universal and flexible work.

Combining CNC technology with top performance, the Vega Pro succeeds wonderfully. This machine can become the heart of your machining operations in your workshop.

The highly intuitive user interface with logical arrangement of the operating elements ensures flawless integration into your operation. Control by external CAD/CAM systems can be perfectly integrated.

Fitting the machine into automated projects is no problem either.
Reliable, powerful, modern high-tech and yet individually customisable if required.

Made-to-measure or serial work, even at industrial level, the Vega Pro is always right for you.

Show more

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • Gooseneck-type machine
  • X-axis operating lengths 2500 / 3200 / 4500 / 6000 mm
  • Very easy-to-use operating software
  • Extended drill head DH17
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

VEGA PRO Technical data

  • Gooseneck-type machine, Y-axis reach 1300mm
  • Workfield : X=2500/3200/3600/4500/6000 mm, Y=1300 mm, Z=200 mm
  • Control speeds: X= 70m/min, Y = 70m/min, Z = 20m/min. speeds
  • Drill head DH17 / V=X6+Y4, H=X2+2 + Y1+1, S=X
  • 8-fold rotary tool change, moving in X, all positions with anti-crash control sensor
  • Controlled central extraction connection
  • Automatic centralised lubrication
  • Hand terminal, control possible
  • Vacuum pump 100m³/h (EV) (Vega Pro X=6000 mm => 140m³/h)
  • Automatic tool length measuring system
  • All reference stops with control sensors
  • Operator control screen integrated in electrical cabinet
  • CE safety system (to be provided)
  • 2 lifters for model 1325, 4 for model 1332 &1345, 6 for model 1360
  • 4 Schmalz consoles, 1 stop behind, 12 vacuum cups (for model 1325)
  • 6 Schmalz consoles, 1 stop behind, 18 vacuum cups (for model 1332)
  • 8 Schmalz consoles, 1 stop behind, 24 vacuum cups (for model 1345)
  • 10 Schmalz consoles, 1 stop behind, 30 vacuum cups (for model 1360)
  • 1 work field
  • 2 Machining areas for pendelum working (for models 1332,1345 & 1360)
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Milling motor 9Kw/12Pk HSK-F63 with ceramic bearings and pneumatically height-adjustable extraction hood
  • Visual status indication of the machine
