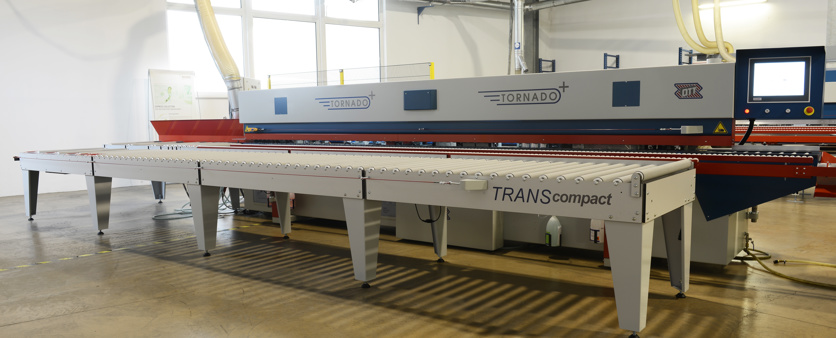

Maximize efficiency with OTT TransCompact

The OTT TransCompact panel return system is a smart, space-saving solution that takes your edge banding efficiency to the next level.

What makes the TransCompact system unique?

  • Compact & Space-Saving – Designed for workshops of all sizes.
  • Single-Person Operation – Optimize your processes without additional staff.
  • Seamless Integration – Easily combine the system with your existing or new OTT edge bander.
  • Also for Large Workpieces – Returns workpieces up to 2400 mm.

How does it work?

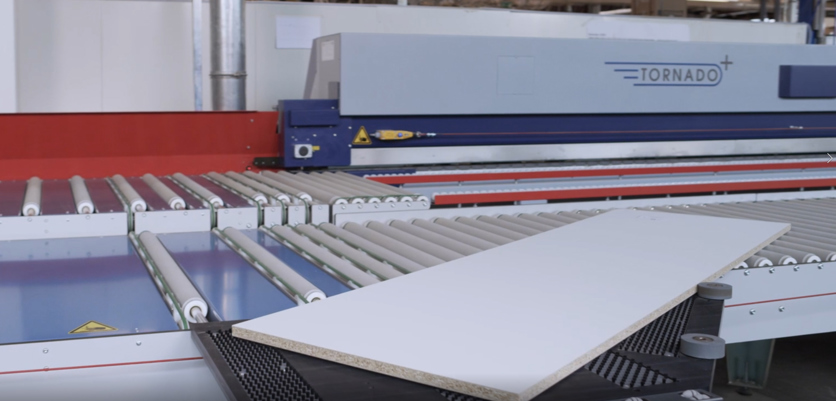

The system provides a clear and structured workflow that seamlessly integrates with your edge banding machine.

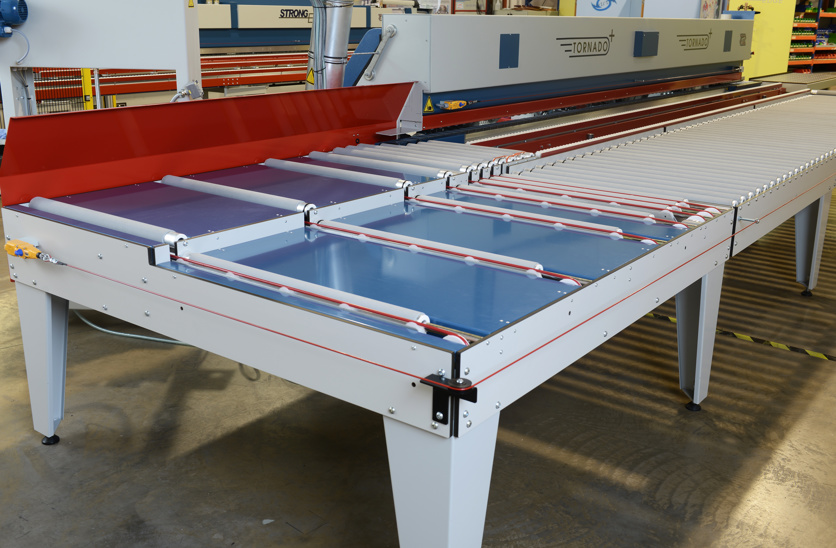

  • Lifting the workpiece – As soon as the workpiece exits the machine, it is lifted by transverse transport belts.
  • Lateral transfer – It is then placed crosswise onto a second roller conveyor segment.
  • Large workpieces? No problem! – A rotating station turns them 90°.
  • Return process – A powered roller conveyor efficiently brings the workpiece back to the operator at the infeed side.

Why choose TransCompact?

This revolutionary panel return system reduces manual handling of workpieces, speeds up your workflow, and provides a reliable, cost-effective solution for long-term performance.

See it in action!

The TransCompact is also available for a live demonstration in our showroom. Come by and experience the power, precision, and efficiency of the OTT TransCompact in action.

Our experts are ready to assist you!

Pacific+
OTT

Pacific+

Edge bander compact and flexible

  • Feed speed 12 to 18 m/min
  • Workpiece height 8 -60 mm
  • Edge thickness 0,3 - 15 mm
  • 2 trimming units : rough and radius+rounding
Tornado+
OTT

Tornado+

Compact, versatile edge-banding machine

  • Feed speed 12 to 18 m/min
  • Workpiece height 8 -60 mm
  • Edge thickness 0,3 - 15 mm
  • 3 trimming units : rough - radius - rounding
FlexEdge
OTT

FlexEdge

Flexible, professional edgebander

  • Feed speed 12 to 20 m/min
  • Workpiece height 8 -60 mm
  • Edge thickness 0,3 - 15 mm
  • 3 trimming units : rough - radius - rounding
Storm+
OTT

Storm+

Fast, versatile edgebander

  • Feed speed 12 to 20 m/min
  • Workpiece height 8 -60 mm
  • 3 trimming units : rough - radius - rounding
  • Automatic 2 Positon scraper
StrongEdge
OTT

StrongEdge

Industrial Edgebander

  • Edge thickness 0,3 - 20 mm
  • 3 trimming units : rough - radius - rounding
  • Automatic 2 Positon scraper
  • Possibility for workpiece height up to 80 mm
TopEdge
OTT

TopEdge

Heavy Duty edgebander

  • Edge thickness 0,3 - 20 mm
  • 4 trimming units : rough - bevel - radius - rounding
  • Automatic 4-position scraper unit
  • Possibility for workpiece height up to 80 mm
TRANScompact
OTT

TRANScompact

Compact & efficient panel return system

  • Efficient one-man operation
  • 90° Rotation of panels
  • Also available as retrofit on existing OTT edgebanders
TRANSlift
OTT

TRANSlift

The smart return system

  • Efficient one-man operation
  • Rotation of panels -90°, +90° or 180°
  • Automatic air cushion lift table on outfeed for ergonomic re-entry into edgebander
  • Also available as retrofit on existing OTT edgebanders
