Voltage 3 x 380V / CE

X 3200 x Y 1300 x Z 250mm

Vacuum pump 90m³.

Drill head with 19 vertical spindles : 9 in X + 10 in Y.

6 horizontal spindles : 2+2 in X + 1+1 in Y.

Milling motor 10hp ISO30 take-up.

Slot saw in X diam. 120mm

Integral turret tool change 8 pos.

Double zero line reference stops in X

4 movable stops in Y

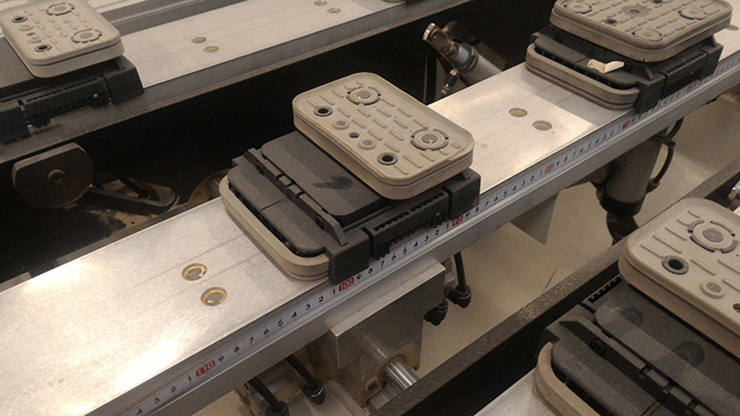

6 schmalz bars + cups

Twincam control on Windows

Ring for positioning aggregates

4 plate lifters

Central lubrication

Air conditioning in electrical cabinet.

WITHOUT aggregates or tools.

WITH barcode reader
