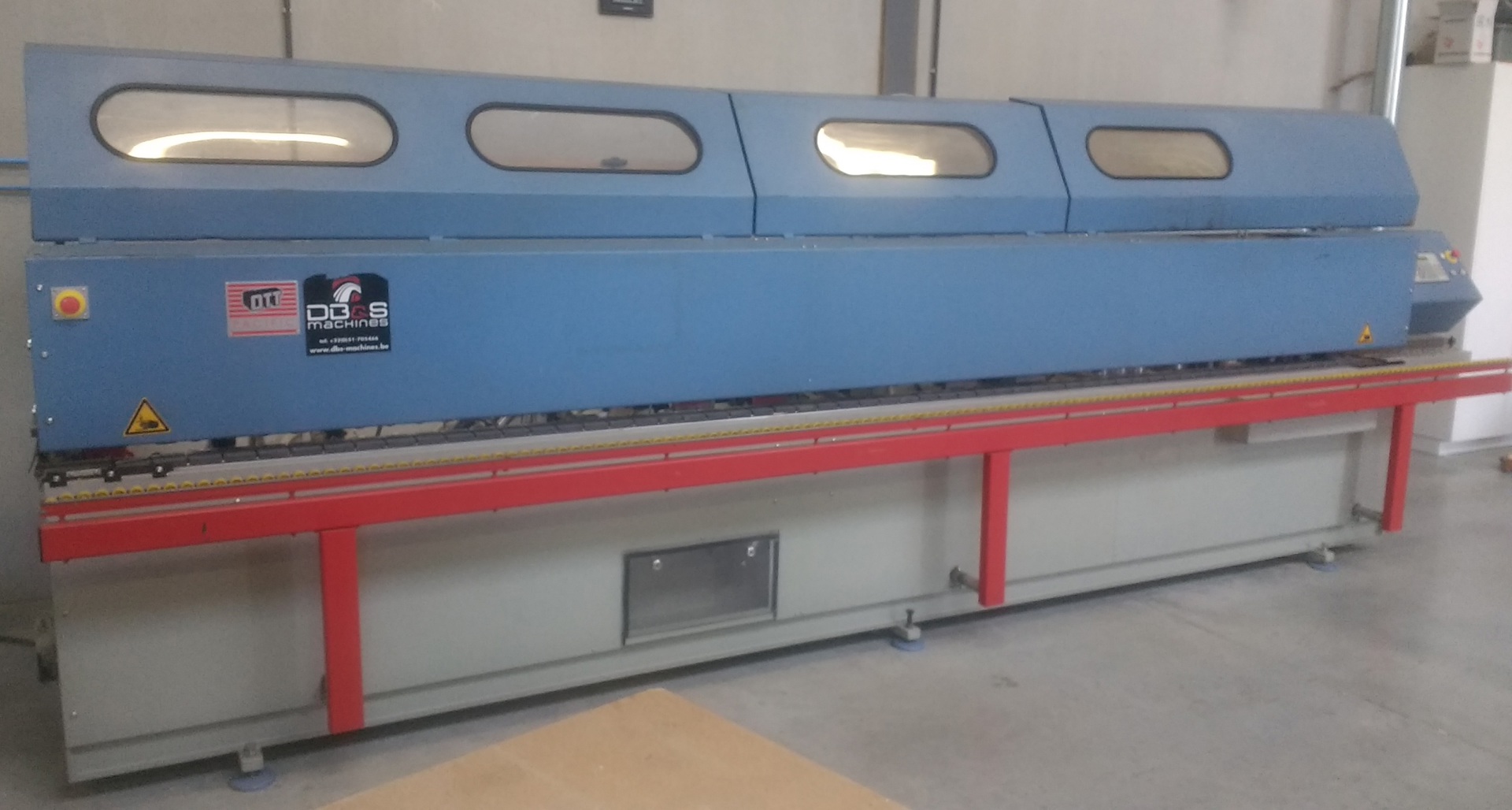

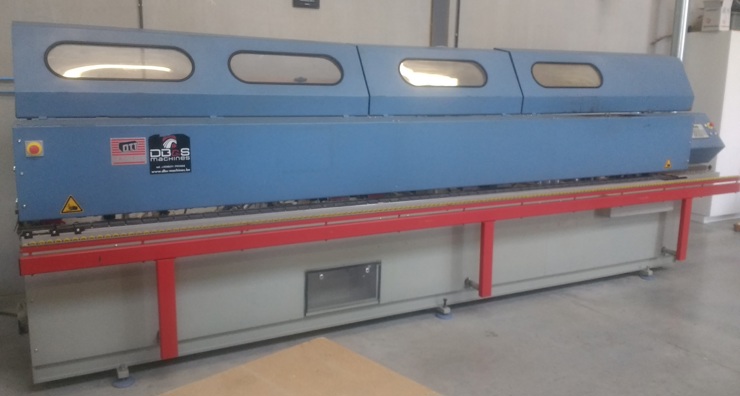

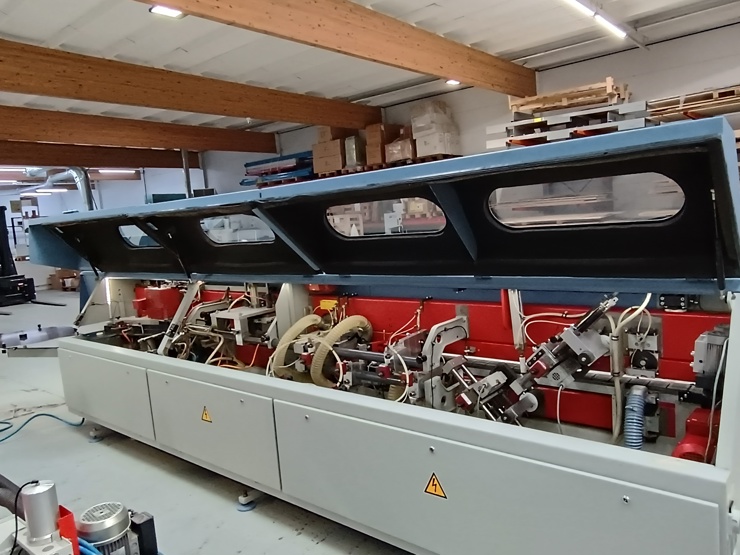

Edge banding machine OTT Pacific V12-F
M000955/IMG_20170925_085556408.jpg?width=928&height=440&bgcolor=fff)
Technical Data

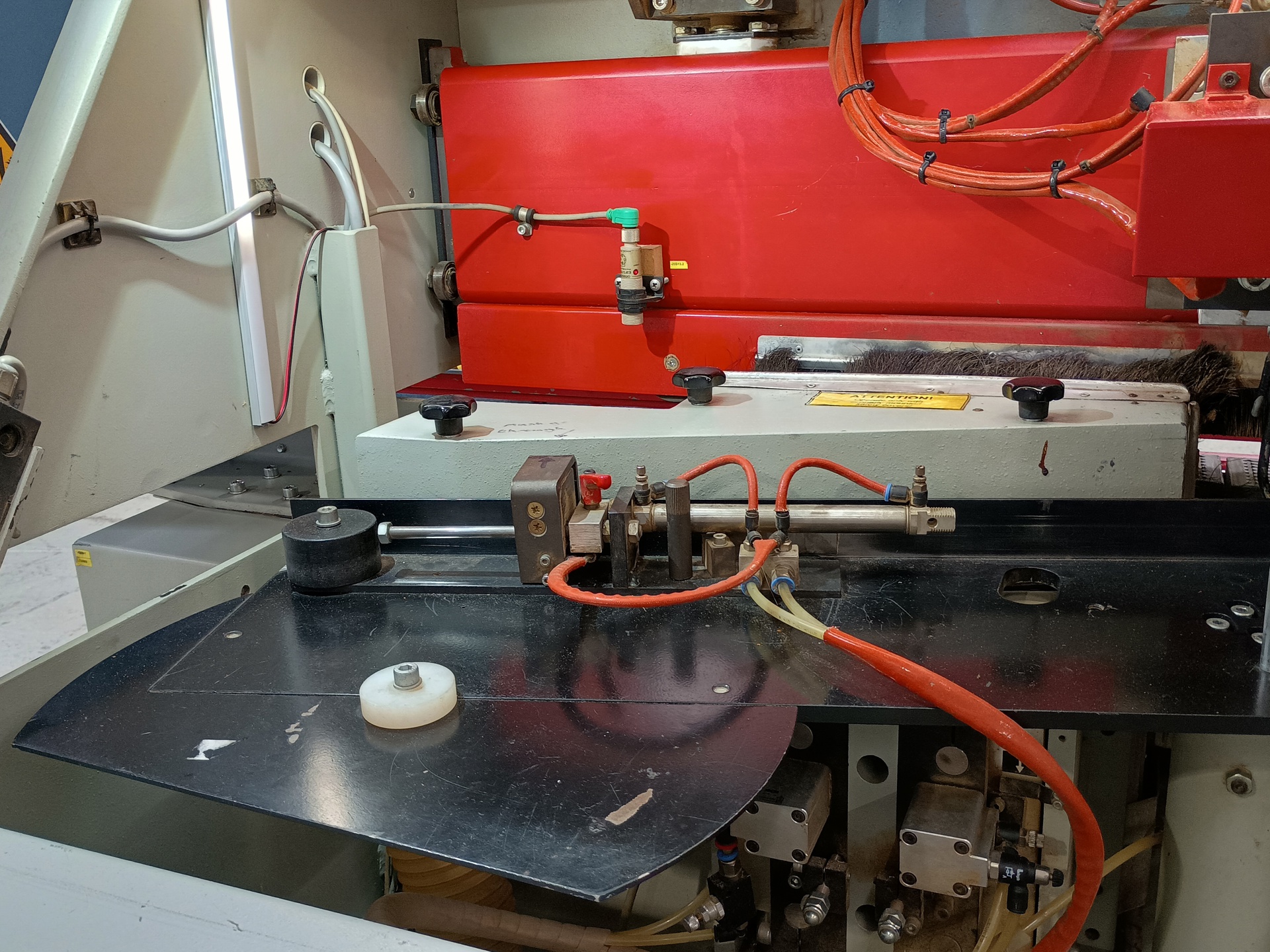

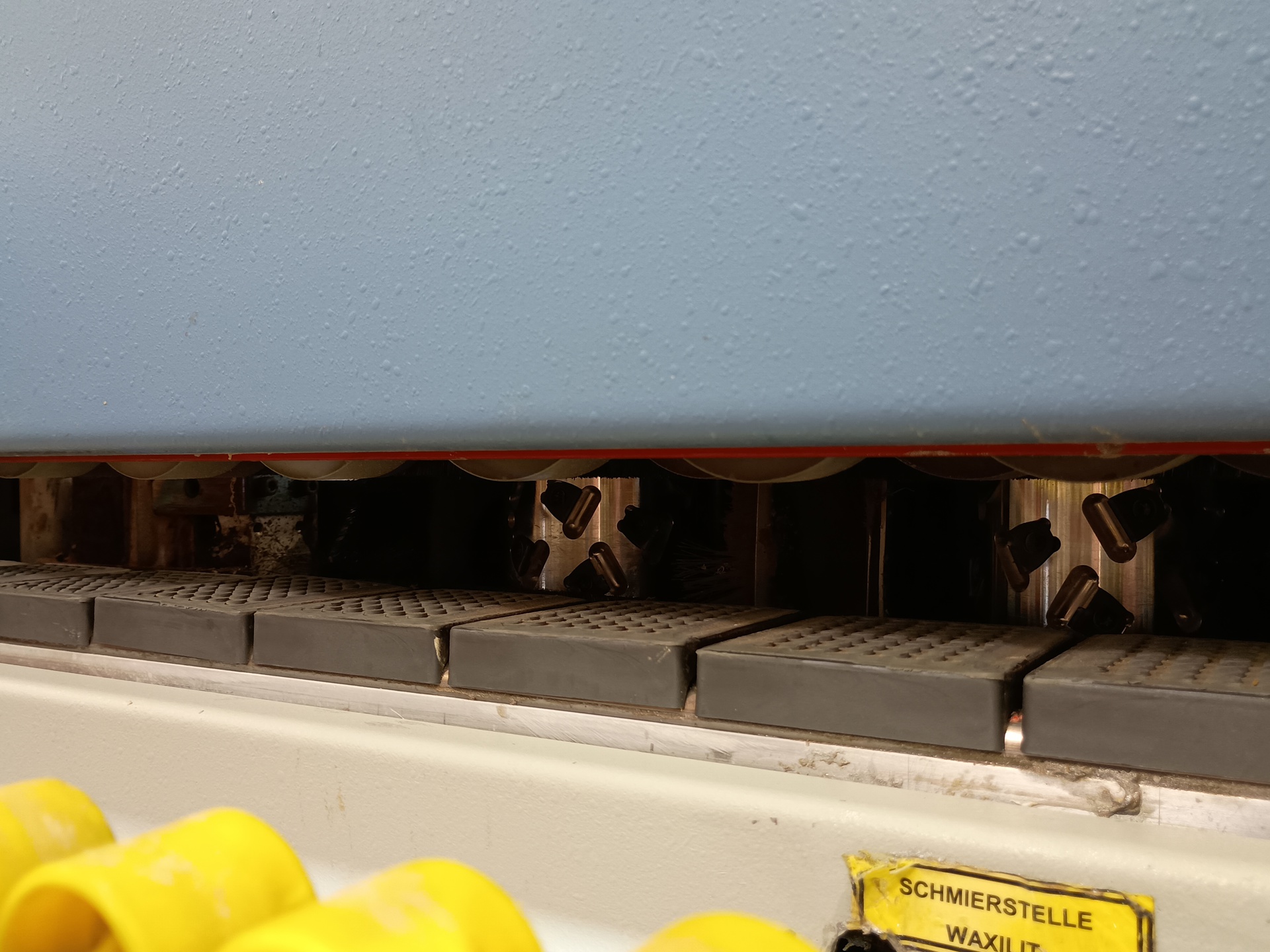

Pre-milling

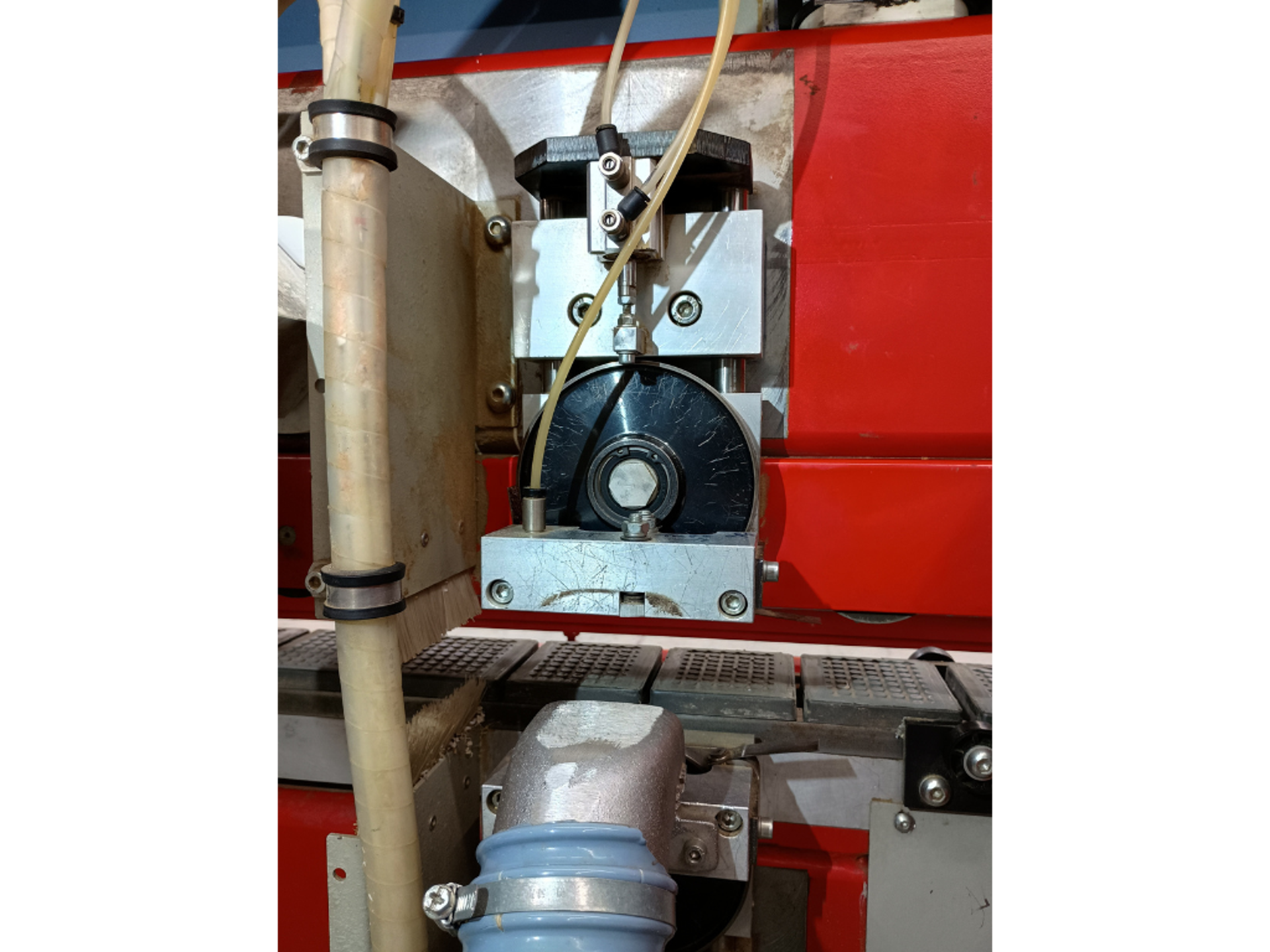

Saw group - 2 motors
Flat milling top/bottom
Radius + bevel cutters top/bottom via changeover motors

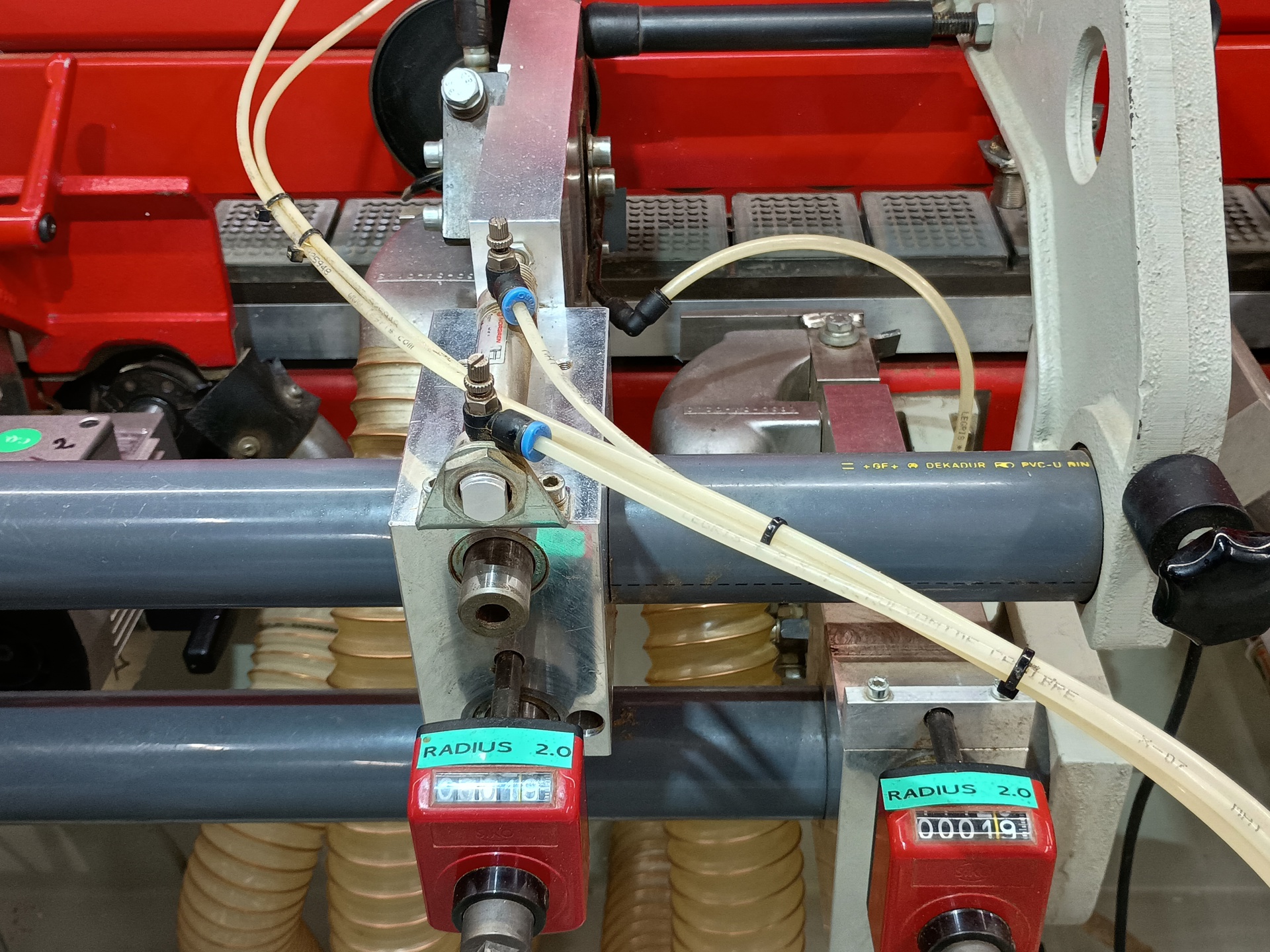

Radius scrapers
Rounding group 2 motors
Flat scrapers
Max. edge thickness : 10 mm
Max. edge height : 42 mm
Edge thickness roller up to : 3 mm
Min. panel length : 150 mm
Min. panel width : 70 mm
Throughput speed : 12 m/min
Air pressure : 6 bar
Dimensions : 5720x1500x1800 mm
Weight : 2200 kg

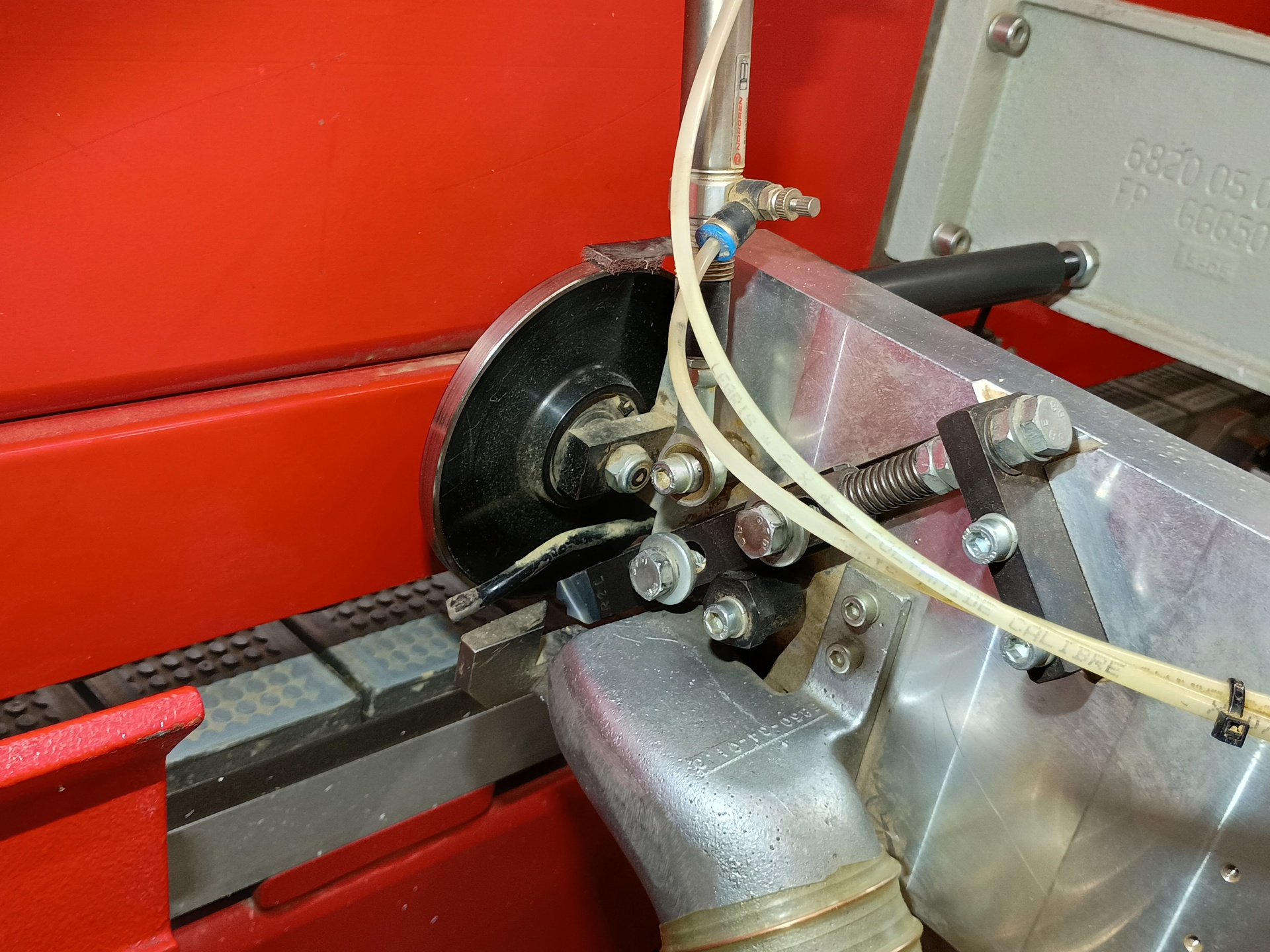

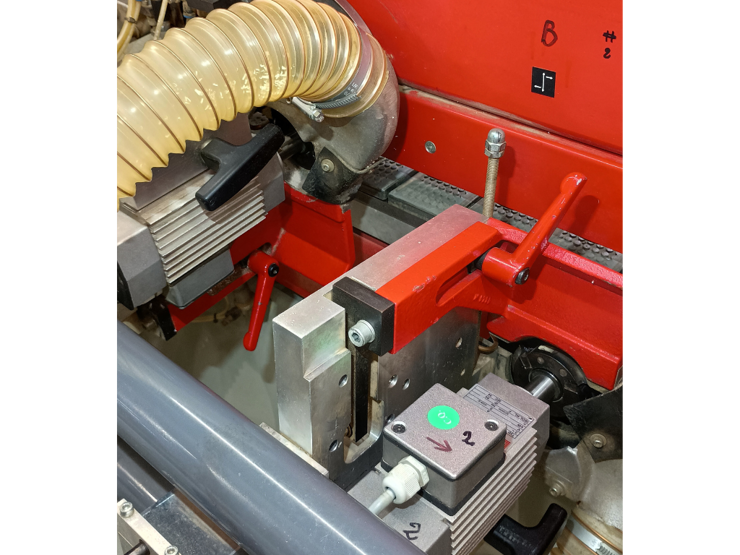

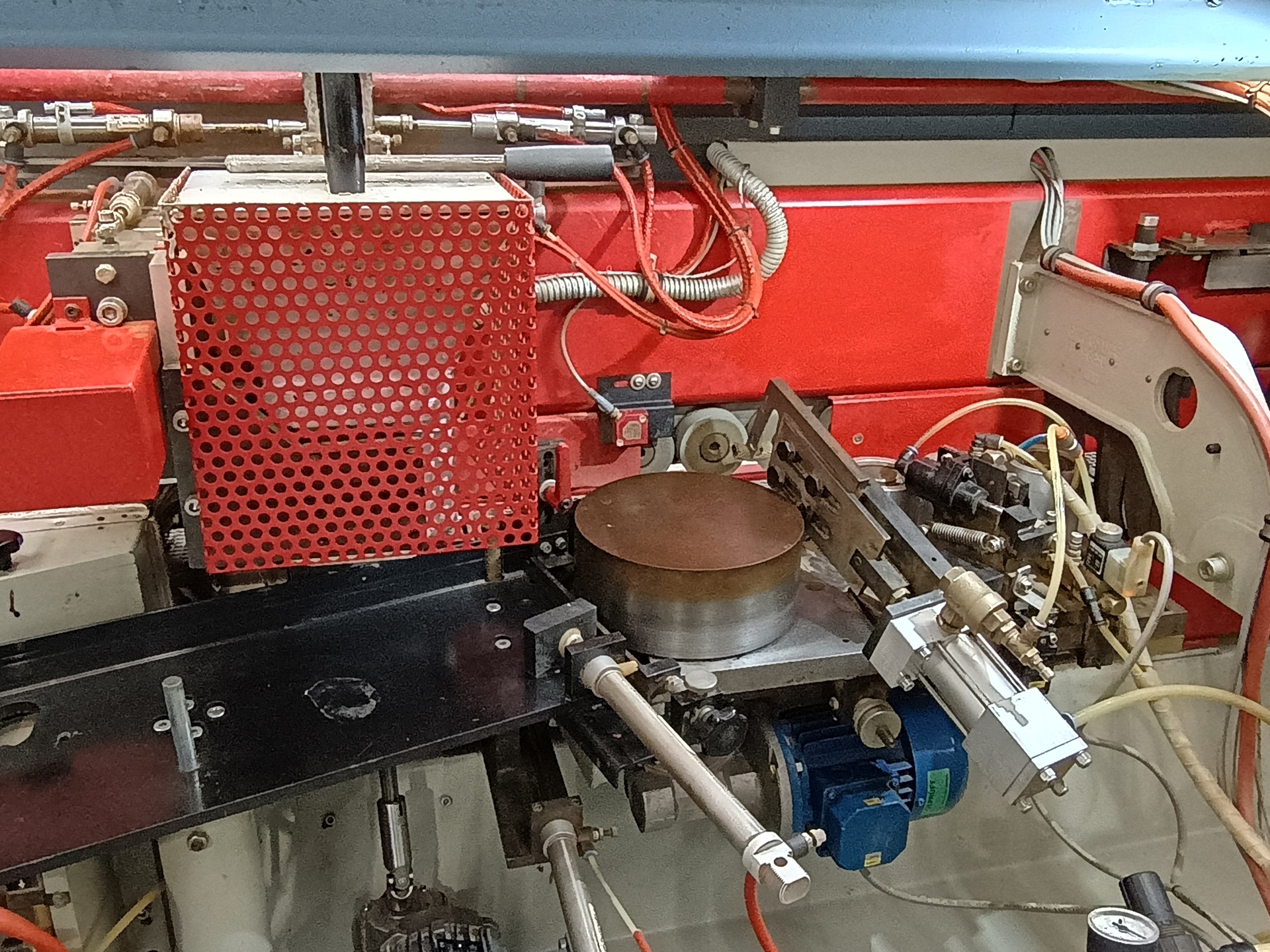

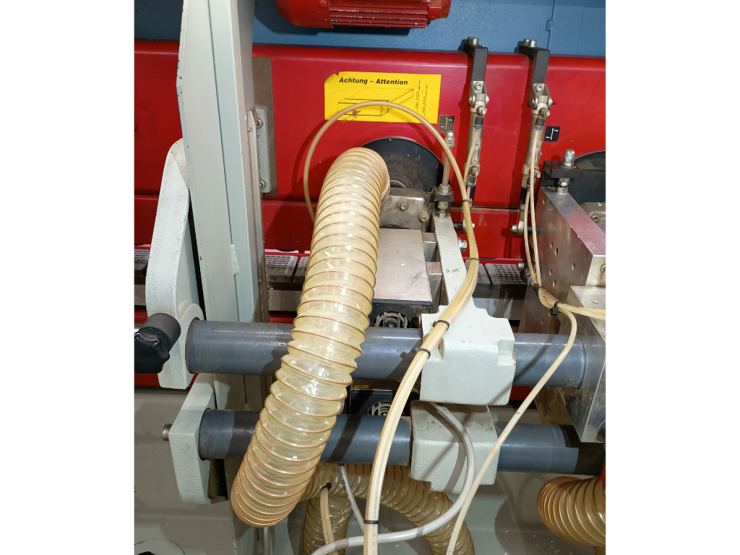

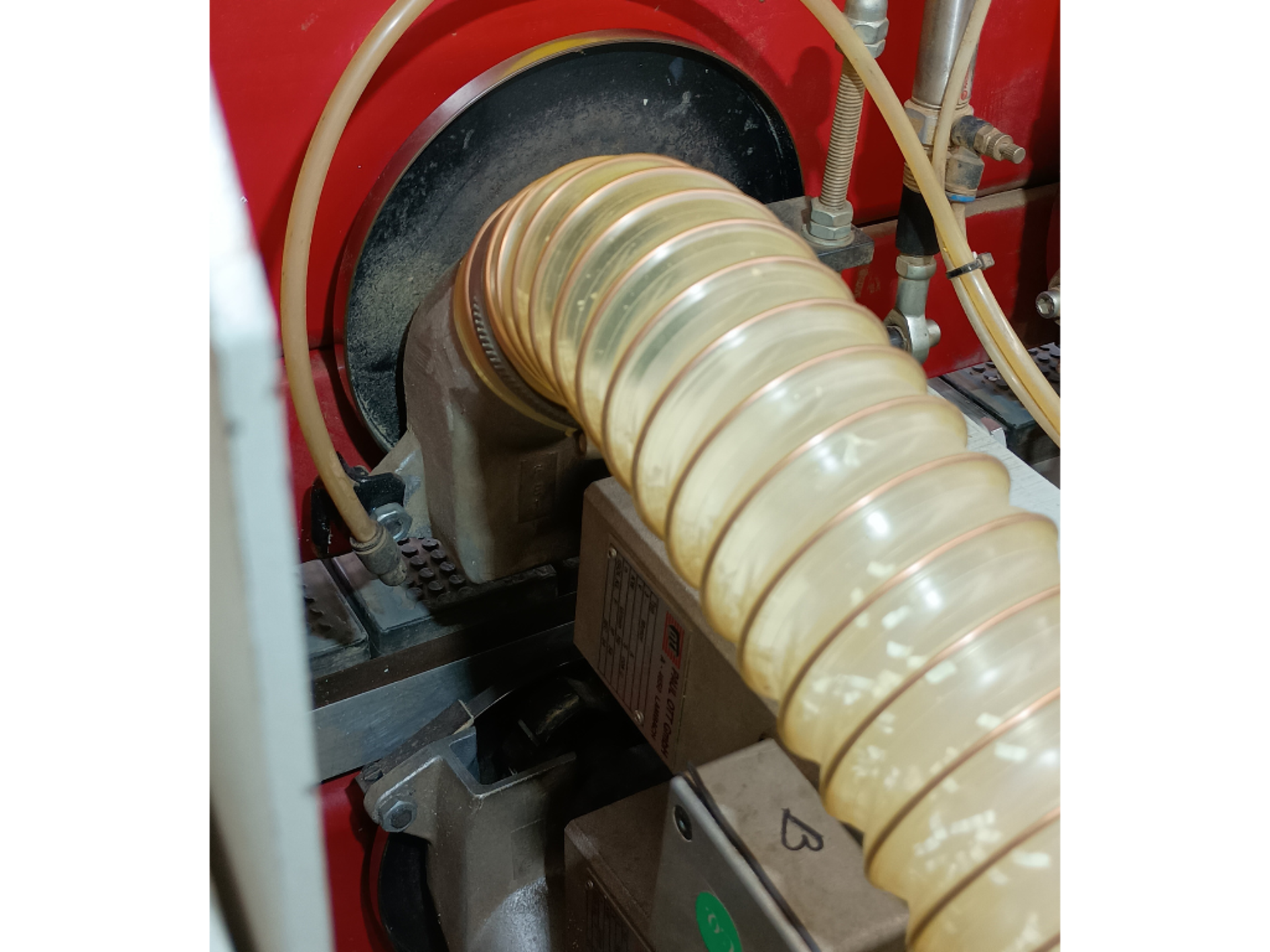

Photo gallery
/IMG_20170925_085556408.jpg)
