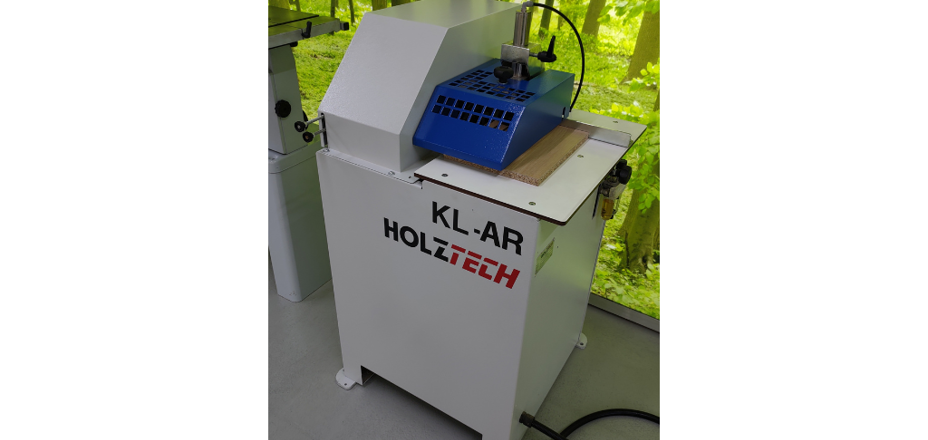

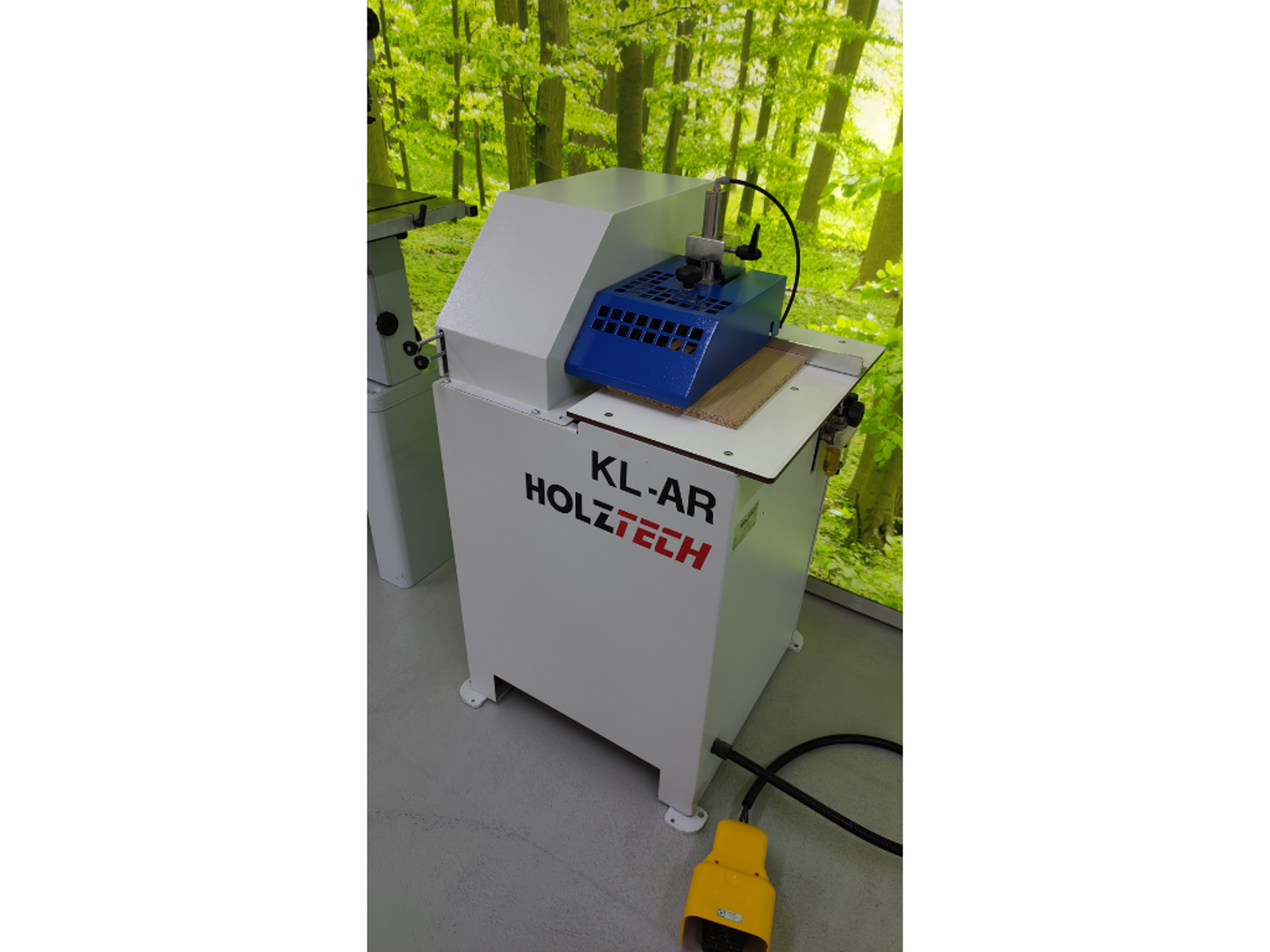

Rounder Holztech KL-AR
M000154/formaat%202e%20hands%20website%20(9).png?width=928&height=440&bgcolor=fff)
Technical Data
Hydropneumatica copy rounder for straight or shaped corners
Edge material 0.4 - 3 mm
Minimum sheet thickness 10 mm
Maximum sheet thickness 50 mm
Milling unit motor 0.5 HP
Milling unit speed 24 000 rpm
Milling tool radius R2 + R3
Compressed air connection 6.5 bar
Diameter extraction nozzle 100 mm
Working height 900 mm
Machine dimensions (l x w x h) 800 x 750 x 1250 mm
Weight 100 kg
* Fully automatic pneumatic machining,
with hydraulic damping for smooth
rounding motion.
* Foot pedal operation
* Positioning stop with display
* Safety cover with microswitch
